Elcometer 1720 Abrasion and Washability Tester

  • Industrial Finishing
  • Laboratory & Physical Test
Elcometer-1720-intro
Elcometer-1720-Washability-_-Abrasion-Tester-intro

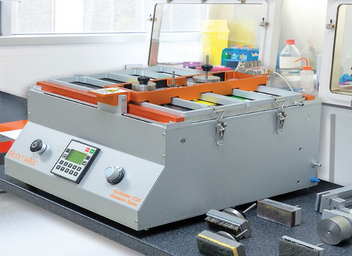

The Elcometer 1720 Abrasion and Washability Tester is robust, reliable and extremely versatile and is designed for testing the washability, brushability and resistance of a wide range of materials.

  • Summary
    • Summary

    • 1720-interchangable-tools-short-descriptions

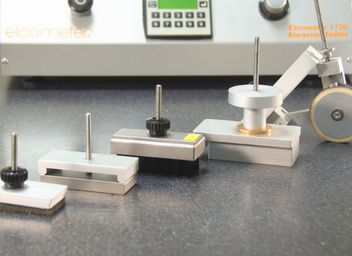

      Interchangeable Tools

      • All tools are interchangeable with the rapid tool change system, making the unit ideal for use in accordance with a wide range of Standards
      1720-user-adjustable-short-description

      User Adjustable

      • The stroke length can be quickly and easily changed by the user to meet their specific requirements between 10 - 300mm (0.4 - 11.8”)
      • Speed of carriage can be adjusted between 10 and 65 cycles per minute
      • Cycle counter can be pre-set for a defined number of cycles from 1 - 32,760
      1720-economic-short-description

      Economic

      • With the ability to test up to 4 different characteristics simultaneously, significant time can be saved
      • With it’s rapid tool change system setting up tests is fast and easy
      • Easy sample placement allows quick change between tests

      These robust, reliable and extremely versatile machines have been designed for testing the washability, brushability and resistance of a wide range of materials including paint, lacquers, inks, coatings, leather, wood, plastics, printed material, fabrics etc.

      • Made from anodised aluminium making it durable and robust
      • All stations can be tested wet or dry
      • The durable and robust design is stable under test allowing repeatable results, even at the fastest stroke speeds
      • Rapid tool change
      • Test up to 4 samples simultaneously
      • Multi-lingual digital display
      • User adjustable stroke length from 10 to 300mm (0.4 to 11.8”)
      • Speed Cycles can be adjusted from 10 to 65 cycles per minute or set to the ISO Standard of 37 cycles /min
      • Wide range of tools available, for testing flat and curved samples
      • Available with or without an integrated liquid dosing pump
  • Key Features
    • Key Features

      Elcometer 1720 Abrasion and Washability Tester

      Elcometer-1720-Meeting-Standards_1

      Meeting Standards

      • With the wide range of tools available many Standards can be tested in one unit
      • All units can be used in accordance with ASTM, DIN, EN and ISO Standards
      • Easily adjustable to customers unique applications using the special tools
      • Washability and abrasion testing on flat and curved samples up to 13mm (0.51”) thick
      Elcometer-1720-Wet-Dry_3

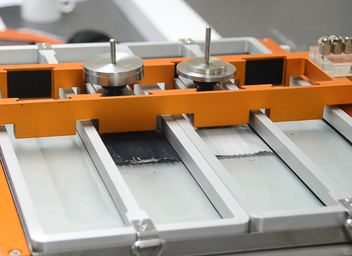

      Wet and Dry

      • All stations can be tested wet or dry
      • Versions are available with or without an internal liquid pump
      • Samples can be tested under wet or dry conditions
  • Technical Information
    • Technical Specification
      Elcometer 1720 Abrasion and Washability Tester
      Part Number Description
      K1720M204 Elcometer 1720 Abrasion Tester, 4 Station (110 - 240V)
      K1720M304 Elcometer 1720 Abrasion & Washability Tester, 4 Station (110 - 240V)
      Dimensions 550 x 460 x 320mm (21.7 x 18.1 x 12.6”)
      Weight 33kg (73lb)
      Packing List Elcometer 1720, 250μm (10mil) metal strip for ASTM D2486 Standard, sample drip tray, 2 x glass sheet, 2 x specimen holding frame, set of 3 tools for instrument set up, 3 x mains leads (UK, EUR and US) and operating instructions.
      Elcometer 1720 part number K1720M304 also includes a liquid dosing bottle, liquid delivery pipe and 2 liquid drain pipes.
      Tools are supplied separately,
  • Standards
    • Standards
      Elcometer 1720 Abrasion and Washability Tester

      AS/NZS 1580.459.1, ASTM D 2486, ASTM D 3450, ASTM D 4213, ASTM D 4488, ASTM D 4828, ASTM F 1319, DIN 53778-2:1983, ECCA T11, EN 13523-11, EN 233/C3.2-A, EN 233/C3.2-B, EN 233/C3.2-C, EN 60730-1-A, GME 60269, ISO 105-X12, ISO 11998, JIS K 5600-5-11, PSA D45 1010, ASTM D1792 - 06, ASTM D2198 -02, ASTM D3206 - 08, ASTM D6279 - 03(2007), MIL-C-3004, MIL-C-46057, MIL-E-11237, MIL-STD-1334B, MIL-P-15422C, FTMS 141, Method 6141, FTMS 141, Method 6142, FTMS Method 536/6701, Federal Specification P-D-220D, P-R-1760, P-W-155C, TT-P-26C(1), TT-P-29K, TT-P-30E(1), TT-P-47G, TT-E-505B, TT-E-506K(1), TT-E-509C, TT-C-535B(2), TT-C-555B(1)

      Standards in grey have been superseded but are still recognised in some industries.

  • Downloads
    • Downloads
      • Elcometer 1720 Abrasion and Washability Tester Instruction Manual

      • Elcometer 1720 Abrasion and Washability Tester Datasheet

      • Elcometer 1720 Scrub Media SC-1 and SC-2 Material Safety Data Sheet

      • Elcometer 1720 Scrub Media ST-1 Material Safety Data Sheet

      • Elcometer 1720 Abrasion and Washability Tester Declaration of Conformity

  • Part Numbers
    • Part Numbers
      Elcometer 1720 Abrasion and Washability Tester
      • Elcometer 1720 Abrasion Tester, 4 Station (110 - 240V)

        This robust, reliable and extremely versatile machine has been designed for testing the resistance on a wide range of materials.

        • Part Number : K1720M204
        • Certification : No Certificate
      • Elcometer 1720 Abrasion & Washability Tester, 4 Station (110 - 240V)

        This machine provides washability and abrasion testing on flat and curved samples up to 13mm (0.51”) thick.

        • Part Number : K1720M304
        • Certification : No Certificate
  • Accessories
    • Accessories
      Elcometer 1720 Abrasion and Washability Tester
      • Part NumberK0004695M068
      • Part NumberKT001720P004
      • Part NumberKT001720P009
      • Part NumberKT001720P006
      • Part NumberKT001720P141
      • Part NumberKT001720P037
      • Part NumberKT001720P064
      • Part NumberKT001720P051
      • Part NumberKT001720P008
      • Part NumberKT001720P062
      • Part NumberKT001720N009
      • Part NumberKT001720N002
      • Part NumberKT001720P016
      • Part NumberKT001720P017
      • Part NumberKT001720P018
      • Part NumberKT001720P031
      • Part NumberKT001720P019
      • Part NumberKT001720P214
      • Part NumberKT001720P012
      • Part NumberKT001720P013
      • Part NumberKT001720P003
      • Part NumberKT001720P030
      • Part NumberKT001720P005
      • Part NumberKT001720P073
      • Part NumberKT001720P029
      • Part NumberKT001720P036
      • Part NumberKT001720P207
      • Part NumberKT001720P074
      • Part NumberKT001720P075
      • Part NumberKT001720P075-2
      • Part NumberKT001720P075-1
      • Part NumberKT001720N003
