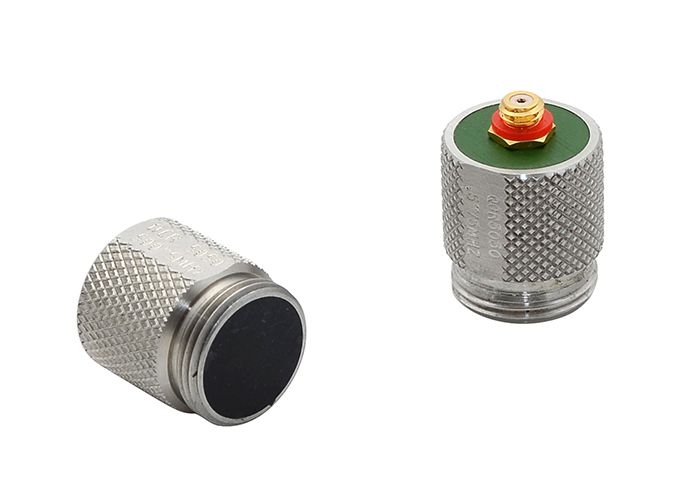

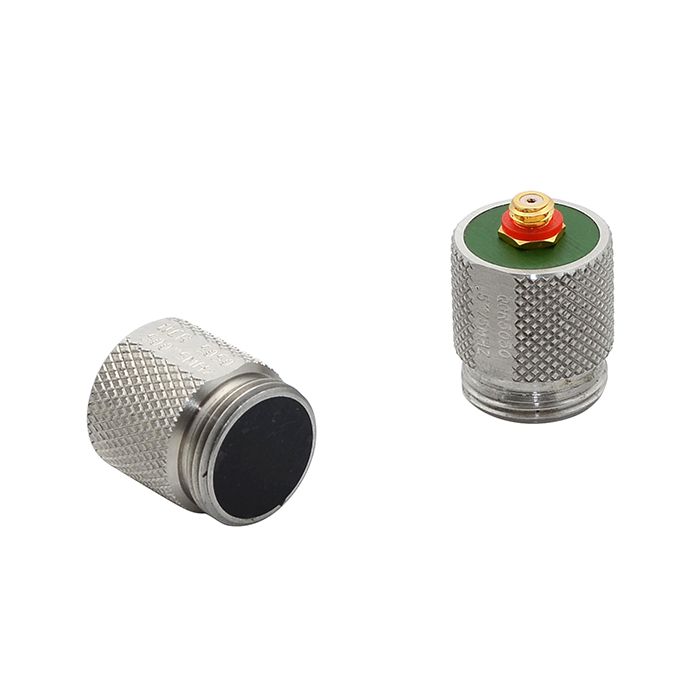

Shear Wave Quick Change Transducers

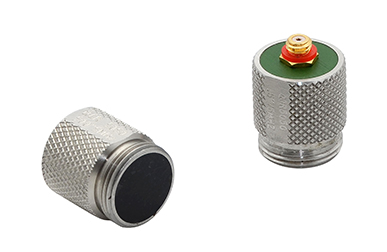

Shear-Wave-Quick-Change

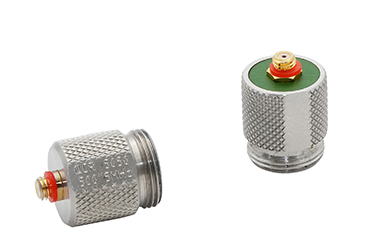

Shear-Wave-Quick-Change-2

Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay.


  • Summary

    • Summary

    • Shear Wave Quick Change Transducers can be used when different frequencies are required using the same wedge, or where different angles are required using the same frequency transducer.

      These transducers are ideal for inspecting curved surfaces and hard to reach areas.

      Shear Wave Quick Change Transducers can be fixed to wedges of different angles to produce shear wave measurements.

      When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.

  • Technical Information
    • Technical Information
      Shear Wave Quick Change Transducers

      Part Number Probe Diameter Probe Characteristic
      Connector Type Suitable for measuring

      Damping

      Microdot

      Cast Iron

      Steel

      Aluminium

      Titanium

      Common Metals

      Castings

      Billets

      Extruded Parts

      Weld Inspection
      1.00MHz Shear Wave - Quick Change Transducers
      TF1M00CG 1/4" Composite
      HG


      TF1M00DG 3/8" Composite
      HG


      TF1M00EG 1/2" Membrane Composite
      HG


      TF1M00CR 1/4" Composite
      R


      TF1M00DR 3/8" Composite
      R


      TF1M00ER 1/2" Composite
      R


      2.25 MHz Shear Wave - Quick Change Transducers
      TF2M25CG-4 1/4" Standard
      HG


      TF2M25DG-4 3/8" Standard
      HG


      TF2M25EG-5 1/2" Standard
      HG


      TF2M25CR-4 1/4" Standard
      R


      TF2M25DR-4 3/8" Standard
      R


      TF2M25ER-4 1/2" Standard
      R


      TF2M25CG-6 1/4" Composite
      HG


      TF2M25DG-6 3/8" Composite
      HG


      TF2M25EG-7 1/2" Composite
      HG


      TF2M25CR-6 1/4" Composite
      R


      TF2M25DR-6 3/8" Composite
      R


      TF2M25ER-6 1/2" Composite
      R


      3.50 MHz Shear Wave - Quick Change Transducers
      TF3M50E-3 1/2" Composite
      S


      5.00 MHz Shear Wave - Quick Change Transducers
      TF5M00CG-4 1/4" Standard
      HG



      TF5M00DG-4 3/8" Standard
      HG



      TF5M00EG-5 1/2" Standard
      HG



      TF5M00CR-4 1/4" Standard
      R



      TF5M00DR-4 3/8" Standard
      R



      TF5M00ER-4 1/2" Standard
      R



      TF5M00CG-6 1/4" Composite
      HG



      TF5M00DG-6 3/8" Composite
      HG



      TF5M00EG-7 1/2" Composite
      HG



      TF5M00CR-6 1/4" Composite
      R



      TF5M00DR-6 3/8" Composite
      R



      TF5M00ER-6 1/2" Composite
      R



      10.00 MHz Shear Wave - Quick Change Transducers
      TF10M0CG-4 1/4" Standard
      HG


      TF10M0DG-4 3/8" Standard
      HG


      TF10M0EG-4 1/2" Standard
      HG


      TF10M0CR-4 1/4" Standard
      R


      TF10M0DR-4 3/8" Standard
      R


      TF10M0ER-4 1/2" Standard
      R


      TF10M0CG-6 1/4" Composite
      HG


      TF10M0CR-6 1/4" Composite
      R


      1.00MHz Shear Wave - Quick Change Transducers
      Part Number TF1M00CG
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF1M00DG
      Probe Diameter 3/8"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF1M00EG
      Probe Diameter 1/2"
      Probe Characteristic Membrane Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF1M00CR
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF1M00DR
      Probe Diameter 3/8"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF1M00ER
      Probe Diameter 1/2"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      2.25 MHz Shear Wave - Quick Change Transducers
      Part Number TF2M25CG-4
      Probe Diameter 1/4"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25DG-4
      Probe Diameter 3/8"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25EG-5
      Probe Diameter 1/2"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25CR-4
      Probe Diameter 1/4"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25DR-4
      Probe Diameter 3/8"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25ER-4
      Probe Diameter 1/2"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25CG-6
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25DG-6
      Probe Diameter 3/8"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25EG-7
      Probe Diameter 1/2"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25CR-6
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25DR-6
      Probe Diameter 3/8"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF2M25ER-6
      Probe Diameter 1/2"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      3.50 MHz Shear Wave - Quick Change Transducers
      Part Number TF3M50E-3
      Probe Diameter 1/2"
      Probe Characteristic Composite
      Damping S
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      5.00 MHz Shear Wave - Quick Change Transducers
      Part Number TF5M00CG-4
      Probe Diameter 1/4"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00DG-4
      Probe Diameter 3/8"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00EG-5
      Probe Diameter 1/2"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00CR-4
      Probe Diameter 1/4"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00DR-4
      Probe Diameter 3/8"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00ER-4
      Probe Diameter 1/2"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00CG-6
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00DG-6
      Probe Diameter 3/8"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00EG-7
      Probe Diameter 1/2"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00CR-6
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00DR-6
      Probe Diameter 3/8"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF5M00ER-6
      Probe Diameter 1/2"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      10.00 MHz Shear Wave - Quick Change Transducers
      Part Number TF10M0CG-4
      Probe Diameter 1/4"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0DG-4
      Probe Diameter 3/8"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0EG-4
      Probe Diameter 1/2"
      Probe Characteristic Standard
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0CR-4
      Probe Diameter 1/4"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0DR-4
      Probe Diameter 3/8"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0ER-4
      Probe Diameter 1/2"
      Probe Characteristic Standard
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0CG-6
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping HG
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      Part Number TF10M0CR-6
      Probe Diameter 1/4"
      Probe Characteristic Composite
      Damping R
      Connector Type
      Microdot
      Suitable for measuring
      Cast Iron
      Steel
      Aluminium
      Titanium
      Common Metals
      Castings
      Billets
      Extruded Parts
      Weld Inspection
      S - Standard Undamped Transducer
      HG - High Gain Damping Transducers
      R - Resolution Transducer
  • Part Numbers
    • Part Numbers
      Shear Wave Quick Change Transducers
      • 1.00MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 1.00MHz
        • Part Number : TF1M00CG
        • Certification : No Certificate
      • 1.00MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Composite
        • Frequency: 1.00MHz
        • Part Number : TF1M00DG
        • Certification : No Certificate
      • 1.00MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 1.00MHz
        • Part Number : TF1M00CR
        • Certification : No Certificate
      • 1.00MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Composite
        • Frequency: 1.00MHz
        • Part Number : TF1M00DR
        • Certification : No Certificate
      • 1.00MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Composite
        • Frequency: 1.00MHz
        • Part Number : TF1M00ER
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Standard
        • Frequency: 2.25MHz
        • Part Number : TF2M25CG-4
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Standard
        • Frequency: 2.25MHz
        • Part Number : TF2M25DG-4
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Standard
        • Frequency: 2.25MHz
        • Part Number : TF2M25EG-5
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Standard
        • Frequency: 2.25MHz
        • Part Number : TF2M25CR-4
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Standard
        • Frequency: 2.25MHz
        • Part Number : TF2M25DR-4
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Standard
        • Frequency: 2.25MHz
        • Part Number : TF2M25ER-4
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 2.25MHz
        • Part Number : TF2M25CG-6
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Composite
        • Frequency: 2.25MHz
        • Part Number : TF2M25DG-6
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Composite
        • Frequency: 2.25MHz
        • Part Number : TF2M25EG-7
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 2.25MHz
        • Part Number : TF2M25CR-6
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Composite
        • Frequency: 2.25MHz
        • Part Number : TF2M25DR-6
        • Certification : No Certificate
      • 2.25 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Composite
        • Frequency: 2.25MHz
        • Part Number : TF2M25ER-6
        • Certification : No Certificate
      • 3.50 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Composite
        • Frequency: 3.50MHz
        • Part Number : TF3M50E-3
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Standard
        • Frequency: 5.00MHz
        • Part Number : TF5M00CG-4
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Standard
        • Frequency: 5.00MHz
        • Part Number : TF5M00DG-4
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Standard
        • Frequency: 5.00MHz
        • Part Number : TF5M00ER-4
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Standard
        • Frequency: 5.00MHz
        • Part Number : TF5M00EG-5
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Standard
        • Frequency: 5.00MHz
        • Part Number : TF5M00CR-4
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Standard
        • Frequency: 5.00MHz
        • Part Number : TF5M00DR-4
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 5.00MHz
        • Part Number : TF5M00CG-6
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Composite
        • Frequency: 5.00MHz
        • Part Number : TF5M00DG-6
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Composite
        • Frequency: 5.00MHz
        • Part Number : TF5M00EG-7
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 5.00MHz
        • Part Number : TF5M00CR-6
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Composite
        • Frequency: 5.00MHz
        • Part Number : TF5M00DR-6
        • Certification : No Certificate
      • 5.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Composite
        • Frequency: 5.00MHz
        • Part Number : TF5M00ER-6
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Standard
        • Frequency: 10.00MHz
        • Part Number : TF10M0CG-4
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Standard
        • Frequency: 10.00MHz
        • Part Number : TF10M0DG-4
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Standard
        • Frequency: 10.00MHz
        • Part Number : TF10M0EG-4
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Standard
        • Frequency: 10.00MHz
        • Part Number : TF10M0CR-4
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 3/8"
        • Probe Characteristic: Standard
        • Frequency: 10.00MHz
        • Part Number : TF10M0DR-4
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/2"
        • Probe Characteristic: Standard
        • Frequency: 10.00MHz
        • Part Number : TF10M0ER-4
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 10.00MHz
        • Part Number : TF10M0CG-6
        • Certification : No Certificate
      • 10.00 MHz Shear Wave - Quick Change Transducers
        • Probe Diameter: 1/4"
        • Probe Characteristic: Composite
        • Frequency: 10.00MHz
        • Part Number : TF10M0CR-6
        • Uncertified No Certification
  • Accessories
    • Accessories
      Shear Wave Quick Change Transducers
      • Part NumberTC-24034-1
      • Part NumberTC-24034-2
      • Part NumberTC-24034-3
      • Part NumberTC-24034-9
      • Part NumberTL-24030-1
      • Part NumberTL-24030-2
      • Part NumberTL-24030-3
      • Part NumberTL-24030-5
      • Part NumberTL-24030-6
      • Part NumberTL-24030-7
      • Part NumberTL-24031
      • Part NumberTL-24032
      • Part NumberTD-24033-1
      • Part NumberTD-24033-2
      • Part NumberTD-24033-3
      • Part NumberTD-24033-4
      • Part NumberTD-24033-5
      • Part NumberTD-24033-6
      • Part NumberTD-24033-7
      • Part NumberTD-24033-8
      • Part NumberTZ-24035
  • Home
  • Shear Wave Quick Change Transducers

Shear Wave Quick Change Transducers

Shear-Wave-Quick-Change
Shear-Wave-Quick-Change-2

Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay.


Summary

main product photo

Shear Wave Quick Change Transducers

Shear Wave Quick Change Transducers can be used when different frequencies are required using the same wedge, or where different angles are required using the same frequency transducer.

These transducers are ideal for inspecting curved surfaces and hard to reach areas.

Shear Wave Quick Change Transducers can be fixed to wedges of different angles to produce shear wave measurements.

When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.

Technical Information
Shear Wave Quick Change Transducers

Part Number Probe Diameter Probe Characteristic
Connector Type Suitable for measuring

Damping

Microdot

Cast Iron

Steel

Aluminium

Titanium

Common Metals

Castings

Billets

Extruded Parts

Weld Inspection
1.00MHz Shear Wave - Quick Change Transducers
TF1M00CG 1/4" Composite
HG


TF1M00DG 3/8" Composite
HG


TF1M00EG 1/2" Membrane Composite
HG


TF1M00CR 1/4" Composite
R


TF1M00DR 3/8" Composite
R


TF1M00ER 1/2" Composite
R


2.25 MHz Shear Wave - Quick Change Transducers
TF2M25CG-4 1/4" Standard
HG


TF2M25DG-4 3/8" Standard
HG


TF2M25EG-5 1/2" Standard
HG


TF2M25CR-4 1/4" Standard
R


TF2M25DR-4 3/8" Standard
R


TF2M25ER-4 1/2" Standard
R


TF2M25CG-6 1/4" Composite
HG


TF2M25DG-6 3/8" Composite
HG


TF2M25EG-7 1/2" Composite
HG


TF2M25CR-6 1/4" Composite
R


TF2M25DR-6 3/8" Composite
R


TF2M25ER-6 1/2" Composite
R


3.50 MHz Shear Wave - Quick Change Transducers
TF3M50E-3 1/2" Composite
S


5.00 MHz Shear Wave - Quick Change Transducers
TF5M00CG-4 1/4" Standard
HG



TF5M00DG-4 3/8" Standard
HG



TF5M00EG-5 1/2" Standard
HG



TF5M00CR-4 1/4" Standard
R



TF5M00DR-4 3/8" Standard
R



TF5M00ER-4 1/2" Standard
R



TF5M00CG-6 1/4" Composite
HG



TF5M00DG-6 3/8" Composite
HG



TF5M00EG-7 1/2" Composite
HG



TF5M00CR-6 1/4" Composite
R



TF5M00DR-6 3/8" Composite
R



TF5M00ER-6 1/2" Composite
R



10.00 MHz Shear Wave - Quick Change Transducers
TF10M0CG-4 1/4" Standard
HG


TF10M0DG-4 3/8" Standard
HG


TF10M0EG-4 1/2" Standard
HG


TF10M0CR-4 1/4" Standard
R


TF10M0DR-4 3/8" Standard
R


TF10M0ER-4 1/2" Standard
R


TF10M0CG-6 1/4" Composite
HG


TF10M0CR-6 1/4" Composite
R


1.00MHz Shear Wave - Quick Change Transducers
Part Number TF1M00CG
Probe Diameter 1/4"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF1M00DG
Probe Diameter 3/8"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF1M00EG
Probe Diameter 1/2"
Probe Characteristic Membrane Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF1M00CR
Probe Diameter 1/4"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF1M00DR
Probe Diameter 3/8"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF1M00ER
Probe Diameter 1/2"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
2.25 MHz Shear Wave - Quick Change Transducers
Part Number TF2M25CG-4
Probe Diameter 1/4"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25DG-4
Probe Diameter 3/8"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25EG-5
Probe Diameter 1/2"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25CR-4
Probe Diameter 1/4"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25DR-4
Probe Diameter 3/8"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25ER-4
Probe Diameter 1/2"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25CG-6
Probe Diameter 1/4"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25DG-6
Probe Diameter 3/8"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25EG-7
Probe Diameter 1/2"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25CR-6
Probe Diameter 1/4"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25DR-6
Probe Diameter 3/8"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF2M25ER-6
Probe Diameter 1/2"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
3.50 MHz Shear Wave - Quick Change Transducers
Part Number TF3M50E-3
Probe Diameter 1/2"
Probe Characteristic Composite
Damping S
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
5.00 MHz Shear Wave - Quick Change Transducers
Part Number TF5M00CG-4
Probe Diameter 1/4"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00DG-4
Probe Diameter 3/8"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00EG-5
Probe Diameter 1/2"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00CR-4
Probe Diameter 1/4"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00DR-4
Probe Diameter 3/8"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00ER-4
Probe Diameter 1/2"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00CG-6
Probe Diameter 1/4"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00DG-6
Probe Diameter 3/8"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00EG-7
Probe Diameter 1/2"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00CR-6
Probe Diameter 1/4"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00DR-6
Probe Diameter 3/8"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF5M00ER-6
Probe Diameter 1/2"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
10.00 MHz Shear Wave - Quick Change Transducers
Part Number TF10M0CG-4
Probe Diameter 1/4"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0DG-4
Probe Diameter 3/8"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0EG-4
Probe Diameter 1/2"
Probe Characteristic Standard
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0CR-4
Probe Diameter 1/4"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0DR-4
Probe Diameter 3/8"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0ER-4
Probe Diameter 1/2"
Probe Characteristic Standard
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0CG-6
Probe Diameter 1/4"
Probe Characteristic Composite
Damping HG
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
Part Number TF10M0CR-6
Probe Diameter 1/4"
Probe Characteristic Composite
Damping R
Connector Type
Microdot
Suitable for measuring
Cast Iron
Steel
Aluminium
Titanium
Common Metals
Castings
Billets
Extruded Parts
Weld Inspection
S - Standard Undamped Transducer
HG - High Gain Damping Transducers
R - Resolution Transducer
Part Numbers
Shear Wave Quick Change Transducers
  • 1.00MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 1.00MHz
    • Part Number : TF1M00CG
    • Certification : No Certificate
  • 1.00MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Composite
    • Frequency: 1.00MHz
    • Part Number : TF1M00DG
    • Certification : No Certificate
  • 1.00MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 1.00MHz
    • Part Number : TF1M00CR
    • Certification : No Certificate
  • 1.00MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Composite
    • Frequency: 1.00MHz
    • Part Number : TF1M00DR
    • Certification : No Certificate
  • 1.00MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Composite
    • Frequency: 1.00MHz
    • Part Number : TF1M00ER
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Standard
    • Frequency: 2.25MHz
    • Part Number : TF2M25CG-4
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Standard
    • Frequency: 2.25MHz
    • Part Number : TF2M25DG-4
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Standard
    • Frequency: 2.25MHz
    • Part Number : TF2M25EG-5
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Standard
    • Frequency: 2.25MHz
    • Part Number : TF2M25CR-4
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Standard
    • Frequency: 2.25MHz
    • Part Number : TF2M25DR-4
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Standard
    • Frequency: 2.25MHz
    • Part Number : TF2M25ER-4
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 2.25MHz
    • Part Number : TF2M25CG-6
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Composite
    • Frequency: 2.25MHz
    • Part Number : TF2M25DG-6
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Composite
    • Frequency: 2.25MHz
    • Part Number : TF2M25EG-7
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 2.25MHz
    • Part Number : TF2M25CR-6
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Composite
    • Frequency: 2.25MHz
    • Part Number : TF2M25DR-6
    • Certification : No Certificate
  • 2.25 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Composite
    • Frequency: 2.25MHz
    • Part Number : TF2M25ER-6
    • Certification : No Certificate
  • 3.50 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Composite
    • Frequency: 3.50MHz
    • Part Number : TF3M50E-3
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Standard
    • Frequency: 5.00MHz
    • Part Number : TF5M00CG-4
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Standard
    • Frequency: 5.00MHz
    • Part Number : TF5M00DG-4
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Standard
    • Frequency: 5.00MHz
    • Part Number : TF5M00ER-4
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Standard
    • Frequency: 5.00MHz
    • Part Number : TF5M00EG-5
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Standard
    • Frequency: 5.00MHz
    • Part Number : TF5M00CR-4
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Standard
    • Frequency: 5.00MHz
    • Part Number : TF5M00DR-4
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 5.00MHz
    • Part Number : TF5M00CG-6
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Composite
    • Frequency: 5.00MHz
    • Part Number : TF5M00DG-6
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Composite
    • Frequency: 5.00MHz
    • Part Number : TF5M00EG-7
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 5.00MHz
    • Part Number : TF5M00CR-6
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Composite
    • Frequency: 5.00MHz
    • Part Number : TF5M00DR-6
    • Certification : No Certificate
  • 5.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Composite
    • Frequency: 5.00MHz
    • Part Number : TF5M00ER-6
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Standard
    • Frequency: 10.00MHz
    • Part Number : TF10M0CG-4
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Standard
    • Frequency: 10.00MHz
    • Part Number : TF10M0DG-4
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Standard
    • Frequency: 10.00MHz
    • Part Number : TF10M0EG-4
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Standard
    • Frequency: 10.00MHz
    • Part Number : TF10M0CR-4
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 3/8"
    • Probe Characteristic: Standard
    • Frequency: 10.00MHz
    • Part Number : TF10M0DR-4
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/2"
    • Probe Characteristic: Standard
    • Frequency: 10.00MHz
    • Part Number : TF10M0ER-4
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 10.00MHz
    • Part Number : TF10M0CG-6
    • Certification : No Certificate
  • 10.00 MHz Shear Wave - Quick Change Transducers
    • Probe Diameter: 1/4"
    • Probe Characteristic: Composite
    • Frequency: 10.00MHz
    • Part Number : TF10M0CR-6
    • Uncertified No Certification

Accessories
Shear Wave Quick Change Transducers
  • Part Number: TC-24034-1
  • Part Number: TC-24034-2
  • Part Number: TC-24034-3
  • Part Number: TC-24034-9
  • Part Number: TL-24030-1
  • Part Number: TL-24030-2
  • Part Number: TL-24030-3
  • Part Number: TL-24030-5
  • Part Number: TL-24030-6
  • Part Number: TL-24030-7
  • Part Number: TL-24031
  • Part Number: TL-24032
  • Part Number: TD-24033-1
  • Part Number: TD-24033-2
  • Part Number: TD-24033-3
  • Part Number: TD-24033-4
  • Part Number: TD-24033-5
  • Part Number: TD-24033-6
  • Part Number: TD-24033-7
  • Part Number: TD-24033-8
  • Part Number: TZ-24035
