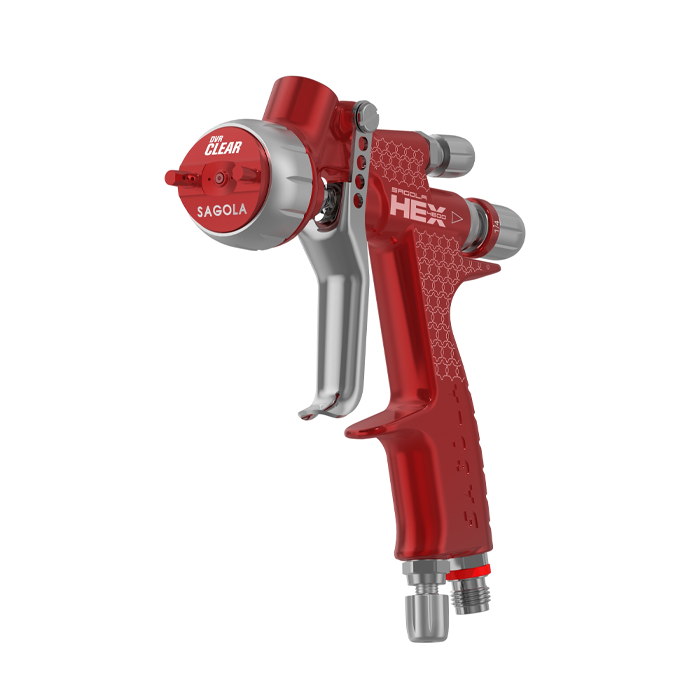

Sagola 4600 HEX Gravity Spray Gun
Sagola 4600 HEX Needle & nozzle technology for pixel perfect atomization.
Introducing the NEW SAGOLA 4600 HEX
Featuring a uniquely designed hexagonal needle and nozzle. With DFT™ / M2M™
- Summary
-
Summary
-
Sagola’s new Hex System™ technology delivers ultra-precise control over droplet formation - ensuring each particle stays perfectly uniform in flight, eliminating mottling and ensuring a flawless finish. It can improve performance on demanding materials, prevents mottling in metallic basecoats and provide better control and stability when spraying low-viscosity clearcoats.

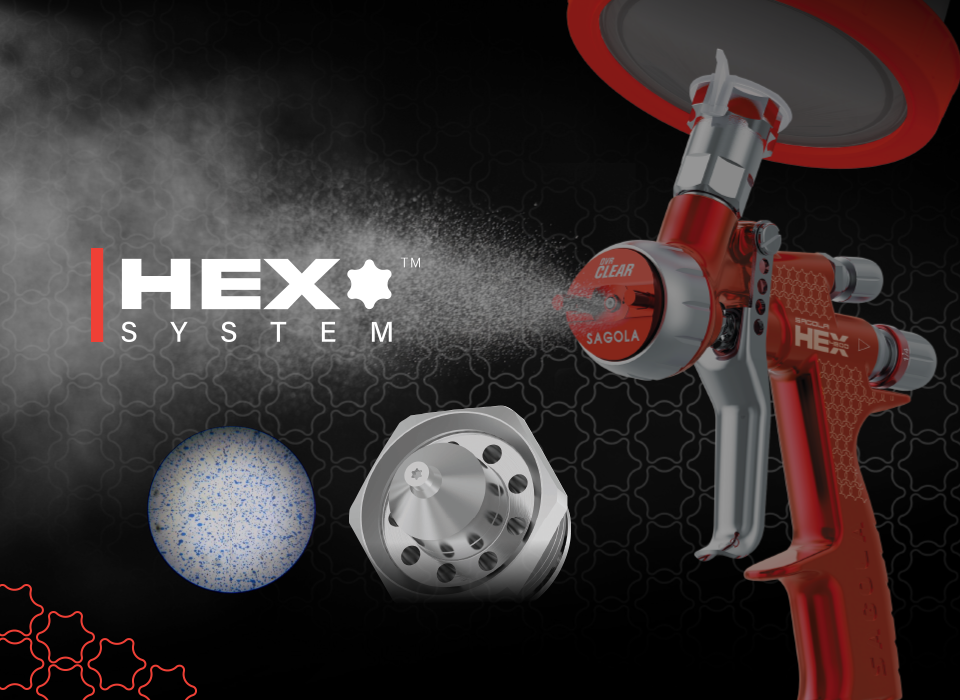

The patent-pending Hex System™ features a uniquely designed hexagonal needle and nozzle that deliver three standout advantages:
-
- Key Features
-
Key Features

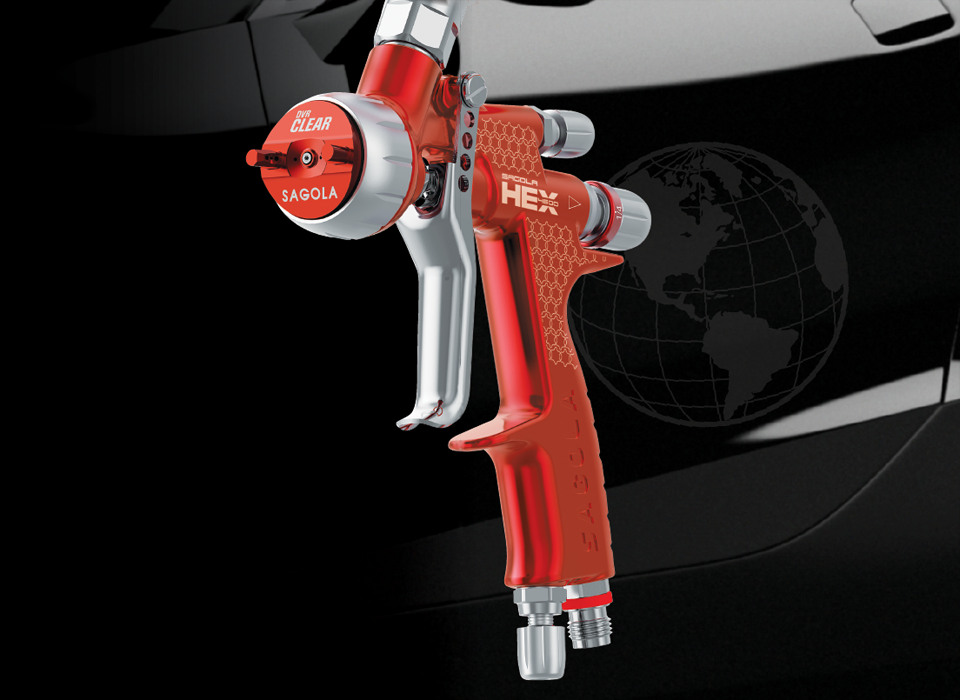

Sagola 4600 HEX Gravity Spray Gun
Ultra-Uniform Fan Pattern
Engineered for perfect paint distribution, the Hex System™ eliminates mottling and uneven metallic particle alignment - especially when spraying silvers, golds, and other high-visibility finishes. The result, a consistently smooth, professional-grade basecoat.
Superior Atomization at Lower Pressure
Achieve a flat, high-quality finish without overloading your air system. The Hex System™ maintains droplet integrity and prevents fan pattern splitting - common issues when spraying at excessive pressure.
Built for precision. Trusted for performance.

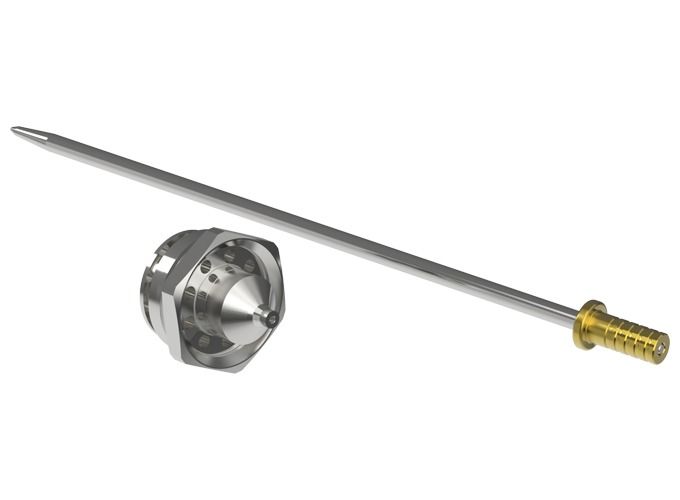

When fitted to any Sagola 4600 DFT spray gun, Sagola’s Hex needle and nozzles redefine spray control - one flawless finish at a time.
Dynamic Flow Technology™
Dynamic Flow Technology™ harnesses the ambient air around the aircap allowing the Sagola 4600 spray gun to provide a flawless finish even at lower working pressures.
DFT ™ Gives you:
• Greater fan stability.
• Superior atomization.
• Uniform fan from top to bottom.
• Less bounce back, less overspray.
• A more precise application with easier overlapping.
• Less painting defects such as shadowing, patch coats and striping.
• An even paint distribution - ideal for difficult base colours such as metallics, silvers, pearls.
What is Metal to Metal Technology?
For over 70 years Sagola have been manufacturing industry leading spray equipment, often setting the benchmark for others to follow.
Our state-of the-art European production facilities uses aerospace grade engineering which allows us to create spray guns using metal to metal technology - which means our spray guns have fewer joints, o-rings and seals than any other spray gun on the market.
This M2M™ technology allows Sagola to offer the lowest maintenance on the market and gives you:• Low maintenance.
• Fewer wearing parts.
• Low cost of ownership.
• Fast clean & colour change.
• No packings, joints or seals in fluid area.
• Greater reliabilty.
-
- Technical Information
-
Technical SpecificationSagola 4600 HEX Gravity Spray Gun
DIGITAL VERSION STANDARD VERSION HEX VERSION Weight with Supplied Cup 665.6g (1.44lbs) 675g (1.49lbs) - Weight without Cup 471g (1.04lbs) 492.8g (1.09lbs) 468 g (1.03 lbs) Dimensions without Cup (W x D x H) 161.77 x 19 x 187.23mm (6.37 x 0.75 x 7.37”) 161.77 x 19 x 187.23mm (6.37 x 0.75 x 7.37”) 161 x 19 x 187 cm (6.33 x 0.74 x 7.36”) Air inlet connection BSP 1/4" M (High flow) BSP 1/4" M (High flow) BSP 1/4" M (High flow) Paint Filter 80 mesh 80 mesh 80 mesh Working Pressure 2 bar (29 psi) 2 bar (29 psi) 1.4 - 2.2 bar (20.3 - 31.9 psi) Cup Capacity 650ml (22fl oz) 650ml (22fl oz) 650ml (22fl oz) Sound Pressure Level (Average) 80 dB 80 dB 80 dB Pressure Gauge Battery Type Duracell/Varta CR 1/3N - - Materials in contact with the product Anodized aluminum, Polyoxymethylene, stainless steel Anodized aluminum, Polyoxymethylene, stainless steel Anodized aluminum, Polyoxymethylene, stainless steel AircapSagola 4600 HEX Gravity Spray GunBASE HVLP CLEAR CLEAR PRO Output Flow 196 - 225 g/min (6.9 - 7.9 oz/min) 174 - 200 g/min (6.1 - 7.0 oz/min) 187 - 220 g/min (6.6 - 7.8 oz/min) 200 - 229 g/min (7 - 8 oz/min) Air Consumption 290 L/min (10.23 cfm) 305 L/min (10.71 cfm) 320 L/min (11.29 cfm) Fan Width 29.0 - 31.5 cm (11.4 - 12.4”) 29.0 - 32.5 cm (11.4 - 12.8”) 27.5 - 29.5 cm (10.8 - 11.6”) 28.5 - 31.0 cm (11.2 - 12.2”) Application Distance 18 - 20cm
(7 - 7.9”)15 - 18cm (5.0 - 7.0") 18 - 20cm
(7 - 7.9”)18 - 20cm
(7 - 7.9”)Air Inlet Pressure 2.2 bar (32 psi) 2.0 bar (29 psi) 2.2 bar (32 psi) 2.2 bar (32 psi)
-
- Downloads
-
Downloads
-
Sagola 4600 HEX Gravity Spray Gun Multi-Lingual Instruction Manual
- Part Numbers
-
Part NumbersSagola 4600 HEX Gravity Spray Gun
-
Sagola 4600 HEX BASE Gravity Spray Gun 1.20- Part Number : 10142470
-
Sagola 4600 HEX BASE Gravity Spray Gun 1.20XL
- Part Number : 10142478
-
Sagola 4600 HEX BASE Gravity Spray Gun 1.30
- Part Number : 10142474
-
Sagola 4600 HEX HVLP Gravity Spray Gun 1.20
- Part Number : 10142473
-
Sagola 4600 HEX HVLP Gravity Spray Gun 1.20XL
- Part Number : 10142481
-
Sagola 4600 HEX HVLP Gravity Spray Gun 1.30
- Part Number : 10142477
-
Sagola 4600 HEX CLEAR Gravity Spray Gun 1.20
- Part Number : 10142472
-
Sagola 4600 HEX CLEAR Gravity Spray Gun 1.20XL
- Part Number : 10142480
-
Sagola 4600 HEX CLEAR Gravity Spray Gun 1.30
- Part Number : 10142476
-
Sagola 4600 HEX CLEAR PRO Gravity Spray Gun 1.20
- Part Number : 10142471
-
Sagola 4600 HEX CLEAR PRO Gravity Spray Gun 1.20XL
- Part Number : 10142479
- Accessories
-
AccessoriesSagola 4600 HEX Gravity Spray Gun
Part Number: 56418759
Part Number: 56418761
Part Number: 56418762
Part Number: 56418760
Part Number: 10011165
Part Number: 10011153
Part Number: 10011154
-
