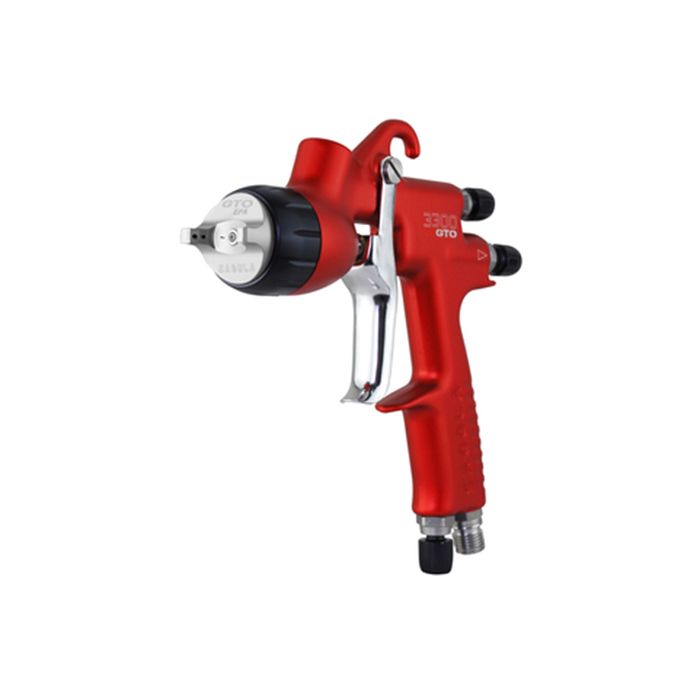

Sagola 3300 Primer Gravity Spray Gun

The Sagola 3300 Primer Gravity Spray Gun is widely considered the ultimate primer gun, setting the standard for speed and precision. Its advanced atomization technology and versatile design deliver a flawlessly
smooth and uniform coat, even when working with the most high-viscosity primers.

Summary
- Summary
- DURABLE FOR DEMANDING MATERIALS
  Primers can be tough on equipment, but the Sagola 3300’s durable construction and lack of internal gaskets or seals mean it can withstand the use of aggressive primers and is easy to clean afterward.
  VERSATILE APPLICATION
  While excelling at primers, the Sagola 3300 Primer can be adapted with different aircaps and nozzles to handle a full range of coatings, from primers to base coats and clear coats, making it a true all-in-one solution for a painter’s workflow.
  The Sagola 3300 Primer is ergonomic, versatile and reliable, ideal for working with primers or finishings.
  It is a value for money spray gun with:
  Engineering excellence

  Interchangeable aircaps, needles & nozzles

  No gaskets, air diffusers, or plastic parts in the product area

  3 year warranty
Key Features
- Key Features

  Sagola 3300 Primer Gravity Spray Gun

  PRIME PERFORMANCE
  The Sagola 3300 Primer is a versatile gun that can be optimized for primers. Its robust design and ability to handle various viscosities make it an ideal choice for applying high-build
  primers.

  CONTROL AND CONSISTENCY
  The gun’s precise air, fan, and fluid controls allow for consistent and even application, which is critical for creating a smooth and level foundation for your top coats.

  Consistent quality finish guaranteed
  1. Interchangeable stainless steel nozzles for optimum paint flow, fast and smooth application.
  2. Interchangeable aluminium aircaps. Identified with different colours.
  3. There are no metallic or plastic external parts used for air distribution, making the cleaning process easier.
  4. New spray fan regulator design with less travel and greater precision. Suitable for left and right handed operation.
  Low maintenance
  5. The only spray gun in the refinishing market with one single piece automatic paint packing gland - minimising potential damage and breakage and making it easier to remove when cleaning the gun.
  6. Manufactured without gaskets or seals in product area. No air diffusers, blind chambers or threads in contact with the paint/product/material. Just metal in contact with metal. Extremely easy to clean and maintain.
  Making the sprayer's job easier
  7. Color coded identifiers perfect for differentiating spray guns when there are multiple painters.
  8. Forged aluminium body; ergonomic, light and perfectly balanced. Soft and silky touch finish.
  9. Ergonomically designed, round and comfortable handle for balanced and smooth strokes for a consistent, better quality finish.
  10. Ergonomically designed trigger reducing operator discomfort and fatigue.
  11. Fan width regulator.
  Sagola 3300 Primer Kit Contents
  Each Sagola 3300 Primer is supplied complete with:
  1. Aircap, needle & nozzle kit (supplied fitted)
  2. 650ml (22fl oz) Reusable plastic gravity cup
  3. Wrench for removing and fitting the nozzle and all servicing needs
  4. Colour Code Identifiers perfect for identifying guns when there are multiple painters (x3) - This is supplied with Sagola 3300 GTO Car versions only
  5. Cleaning Brush

Technical Information

Technical Specification

Sagola 3300 Primer Gravity Spray Gun

Model	Sagola 3300 Primer
Weight with Supplied Cup	662.4g (1.46lbs)
Weight without Cup	474.8g (1.05lbs)
Dimensions without Cup (W x D x H)	181.4 x 19 x 178.99mm (7.14 x 0.75 x 7.05”)
Air inlet connection	BSP 1/4" M
Paint Filter	80 mesh
Working Pressure	1.4 - 2 bar (20.3 - 31.9 psi)
Cup Capacity	650ml (22fl oz)
Sound Pressure Level (Average)	80 dB
Materials in contact with the product	Anodized Aluminium, Stainless Steel, PTFE, POM & Nylon

¹ Dependent on model

Part Numbers
- Part Numbers

  Sagola 3300 Primer Gravity Spray Gun
  Needle & Nozzle Size

  3300 GTO Aircap Type
  No data found!!
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO EPA Aircap - 1.40 Needle & Nozzle Kit

    Needle & Nozzle Size: 1.40 (1.40mm)

    3300 GTO Aircap Type: GTO EPA

    Part Number : PG10141562
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO EPA Aircap - 1.60 Needle & Nozzle Kit

    Needle & Nozzle Size: 1.60 (1.60mm)

    3300 GTO Aircap Type: GTO EPA

    Part Number : 10141563
  - Sagola 3300 GTO Gravity Spray Gun, GTO EPA Aircap - 1.80mm Needle & Nozzle Kit

    Needle & Nozzle Size: 1.80 (1.80mm)

    3300 GTO Aircap Type: GTO EPA

    Part Number : 10141564
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO EVO Aircap - 1.30mm Needle & Nozzle Kit

    Needle & Nozzle Size: 1.30 (1.30mm)

    3300 GTO Aircap Type: GTO EVO

    Part Number : 10141559
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO EVO Aircap - 1.40mm Needle & Nozzle Kit

    Needle & Nozzle Size: 1.40 (1.40mm)

    3300 GTO Aircap Type: GTO EVO

    Part Number : 10141560
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap - 1.40mm Needle & Nozzle Kit

    Needle & Nozzle Size: 1.40 (1.40mm)

    3300 GTO Aircap Type: GTO HVLP

    Part Number : PG10141555
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap - 1.60mm Needle & Nozzle Kit

    Needle & Nozzle Size: 1.60 (1.60mm)

    3300 GTO Aircap Type: GTO HVLP

    Part Number : 10141556
  - SAGOLA 3300 GTO Gravity Spray Gun, GTO HVLP Aircap - 1.80mm Needle & Nozzle Kit

    Needle & Nozzle Size: 1.80 (1.80mm)

    3300 GTO Aircap Type: GTO HVLP

    Part Number : 10141557
Accessories
- Accessories

  Sagola 3300 Primer Gravity Spray Gun
  - Reusable Gravity Cup - Aluminium; 1 Litre (33.8fl oz)

    Part Number: 56418082
  - Product Mini FIlter (x10) for PT56418084, PT56418432, PT56418082 & PT56418433

    Part Number: 56418438
  - Lubricant Grease (SAE 10), 100ml (3.38fl oz)

    Part Number: 56418589
  - Spray Gun Cleaning Kit

    Part Number: 40000086
  - Magnetic Stand for One Spray Gun

    Part Number: 40000245
  - Magnetic Stand for Two Spray Guns

    Part Number: 40000246
  - Spray Gun & Accessories Locker

    Part Number: 70000010
  - Sagola 3300 GTO: 1.30mm Needle & Nozzle Kit

    Part Number: 10011191
  - Sagola 3300 GTO: 1.40mm Needle & Nozzle Kit

    Part Number: 10011181
  - Sagola 3300 GTO: 1.60mm Needle & Nozzle Kit

    Part Number: 10011182
  - Sagola 3300 GTO: 1.80mm Needle & Nozzle Kit

    Part Number: 10011183
  - Sagola 3300 GTO: 2.20mm Needle & Nozzle Kit

    Part Number: 10011192
  - Sagola 3300 GTO: 2.80mm Needle & Nozzle Kit

    Part Number: 10011190
  - RC2 Economy Air Flow Regulator with Analogue Pressure Gauge

    Part Number: 40000335
  - Reusable Gravity Cup - Plastic; 650ml (22fl oz) - Product Mini Filter included

    Part Number: 56418084
  - Coupling for Disposable Gravity Cup - 3M PPS

    Part Number: 55711612-4
  - Coupling for Disposable Gravity Cup - MIPA-CARWOX

    Part Number: 55711616
  - Coupling for Disposable Gravity Cup - GERSON-NORTON

    Part Number: 55711614
  - Coupling for Disposable Gravity Cup - FLEXI-CUP

    Part Number: 55711615
  - Coupling for Disposable Gravity Cup - DEVILBISS-DEKUPS

    Part Number: 55711618
  - Coupling for Disposable Gravity Cup - SATA RPS

    Part Number: 55711620
  - Coupling for Disposable Gravity Cup - COLAD

    Part Number: 55711623
  - Gravity Cup Pressure Kit

    Part Number: 56418513
  - Sagola 3300 GTO: EPA Aircap

    Part Number: 56418645
  - Sagola 3300 GTO: EVO Aircap

    Part Number: 56418558
  - Sagola 3300 GTO: HVLP Aircap

    Part Number: 56418552
  - Sagola 3300 GTO: 64S Aircap

    Part Number: 56418646
  - Gravity Cup Product Filter; 1 Litre (33.8fl oz) (x10)

    Part Number: 56418003
  - Sagola 3300 GTO: 1.20mm Needle & Nozzle Kit

    Part Number: 10011180
  - Sagola 3300 GTO: 2.00mm Needle & Nozzle Kit

    Part Number: 10011188
  - Sagola 3300 GTO: 2.50mm Needle & Nozzle Kit

    Part Number: 10011189
  - Coupling for Disposable Gravity Cup – 3M Series 2.0 PPS

    Part Number: 55711627
  - Packing Gland

    Part Number: 57212211
