Elcometer Protective Coating Inspection Kit 5
- Protective Coatings
A more comprehensive kit than kits 1-4, the Elcometer Protective Coating Inspection Kit 5 expands the range of instruments available to the protective coatings inspector.
- Summary
-
Summary
-
Measurement parameters include:
- Material thickness
- Surface inspection
- Weld inspection
- Surface cleanliness
- Surface profile
- Climatic conditions
- Coating thickness
- Adhesion
-
- Key Features
-
Key Features

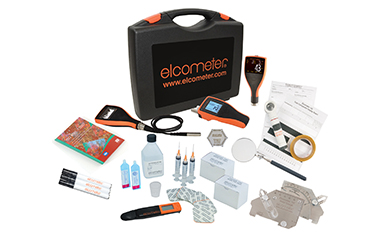

Elcometer Protective Coating Inspection Kit 5
Kit Contents:
Model Description Elcometer MTG2 Material Thickness Gauge Elcometer 128 Pictorial Standards1
Elcometer 131/1C Telescopic Inspection Mirror Elcometer 137 LED Illuminated Magnifier Elcometer 144 Paint Safe Marker Pens (Pack of 3) Elcometer 147 Weld Gauge Elcometer 142 Dust Tape Test Kit Elcometer 138 Bresle Salt Kit² Elcometer 138/2 Surface Contamination Kit Elcometer 122 Testex Tape, Coarse & Extra Coarse Elcometer 124 Thickness Gauge Elcometer 224 Digital Surface Profile Separate Gauge & Standard Separate Probe, Model T Elcometer 319 Digital Dewpoint Meter, with Magnetic Surface Probe, Top Elcometer 112 Hexagonal Wet Film Comb: 25 - 3000µm (1 - 120mils) Elcometer 456 Separate Digital Coating Thickness Gauge with F2 Standard Probe, Ferrous Model T Elcometer 121 Paint Inspection Gauge with Cross Hatch Cutters 6 x 1, 2 & 3mm and ISO (ASTM) Adhesive Tape, Top ¹ Swedish Rust Standard ISO 8501, SIS055900 supplied in Metric Kit, US Standard SSPC VIS 1-01 and VIS-3 supplied in Imperial Kit
² Supplied with Elcometer 135C Bresle Test Patches (x50)
-
- Technical Information
-
Technical SpecificationElcometer Protective Coating Inspection Kit 5
Part Number Description Certificate Metric Imperial YKIT-PROTECTIVE-5M YKIT-PROTECTIVE-5E Elcometer Protective Coatings Kit 5
Dimensions 575 x 475 x 205mm (22.64 x 18.70 x 8.07”) Part Number Metric Imperial YKIT-PROTECTIVE-5M YKIT-PROTECTIVE-5E Description Elcometer Protective Coatings Kit 5 Certificate
Dimensions 575 x 475 x 205mm (22.64 x 18.70 x 8.07”) ● Certified Kit available.
-
- Standards
-
StandardsElcometer Protective Coating Inspection Kit 5
AS 1580.108.2, AS 1580.408.4, AS 2331.1.4, AS 3894.3-B, AS 3894.6-A, AS 3894.6-C, AS 3894.6-D, AS 3894.9, AS/NZS 1580.107.3, AS/NZS 1580.108.1, ASTM B 499, ASTM D 1186-B, ASTM D 1400, ASTM D 2200, ASTM D 3359-B, ASTM D 4138-A, ASTM D 4414-A, ASTM D 4417-C, ASTM D 7091, ASTM E 376, ASTM E 797, ASTM G 12, BS 3900-C5-5B, BS 3900-C5-6A, BS 3900-C5-6B, BS 3900-E6, BS 5411-11, BS 5411-3, BS 5599, BS 7079-B4, BS 7079-C5, DIN 50981, DIN 50984, DIN 50986, ECCA T1, ECCA T6, EN 13523-1, EN 13523-6, EN 15317, IMO MSC.215(82), IMO MSC.244(83), ISO 1461, ISO 16276-2, ISO 19840, ISO 2063, ISO 2360, ISO 2409, ISO 2808-12, ISO 2808-1A, ISO 2808-5B, ISO 2808-6A, ISO 2808-6B, ISO 2808-7B, ISO 2808-7C, ISO 2808-7D, ISO 8501-1, ISO 8502-3, ISO 8502-4, ISO 8502-6, ISO 8502-9, ISO 8503-5, JIS K 5600-1-7, NACE RP0287, NF T30-038, NF T30-123, NF T30-124, NF T30-125, SANS 5772, SS 184159, SS 55900, SSPC Guide 15, SSPC PA 2, SSPC VIS 1, SSPC VIS 2, SSPC VIS 3, SSPC VIS 4, SSPC VIS 5, US Navy NSI 009-32, US Navy PPI 63101-000
Standards in grey have been superseded but are still recognised in some industries.
-
- Downloads
-
Downloads
-
Elcometer Protective Coating Inspection Kit 5 Datasheet
- Part Numbers
-
Part NumbersElcometer Protective Coating Inspection Kit 5
-
Elcometer Protective Coatings Kit 5 - MetricA more comprehensive kit than kits 1-4, the Elcometer Protective Coating Inspection Kit 5 expands the range of instruments available to the protective coatings inspector. This has dimensions of 575 x 475 x 205mm.
- Dimensions: 575 x 475 x 205mm (22.64 x 18.70 x 8.07”)
- Part Number : YKIT-PROTECTIVE-5M
- Certification : No Certificate
- Part Number : YKIT-PROTECTIVE-5MC
- Certification : Calibration Certificate
-
Elcometer Protective Coatings Kit 5 - ImperialA more comprehensive kit than kits 1-4, the Elcometer Protective Coating Inspection Kit 5 expands the range of instruments available to the protective coatings inspector. This has dimensions of 22.64 x 18.70 x 8.07”.
- Dimensions: 575 x 475 x 205mm (22.64 x 18.70 x 8.07”)
- Part Number : YKIT-PROTECTIVE-5E
- Certification : No Certificate
- Part Number : YKIT-PROTECTIVE-5EC
- Certification : Calibration Certificate
-
-
Elcometer Protective Coating Inspection Kit 5
- Protective Coatings
A more comprehensive kit than kits 1-4, the Elcometer Protective Coating Inspection Kit 5 expands the range of instruments available to the protective coatings inspector.
Summary
Elcometer Protective Coating Inspection Kit 5
Measurement parameters include:
- Material thickness
- Surface inspection
- Weld inspection
- Surface cleanliness
- Surface profile
- Climatic conditions
- Coating thickness
- Adhesion
Key Features
Elcometer Protective Coating Inspection Kit 5
Kit Contents:
| Model | Description |
| Elcometer MTG2 | Material Thickness Gauge |
| Elcometer 128 | Pictorial Standards1 |
| Elcometer 131/1C | Telescopic Inspection Mirror |
| Elcometer 137 | LED Illuminated Magnifier |
| Elcometer 144 | Paint Safe Marker Pens (Pack of 3) |
| Elcometer 147 | Weld Gauge |
| Elcometer 142 | Dust Tape Test Kit |
| Elcometer 138 | Bresle Salt Kit² |
| Elcometer 138/2 | Surface Contamination Kit |
| Elcometer 122 | Testex Tape, Coarse & Extra Coarse |
| Elcometer 124 | Thickness Gauge |
| Elcometer 224 | Digital Surface Profile Separate Gauge & Standard Separate Probe, Model T |
| Elcometer 319 | Digital Dewpoint Meter, with Magnetic Surface Probe, Top |
| Elcometer 112 | Hexagonal Wet Film Comb: 25 - 3000µm (1 - 120mils) |
| Elcometer 456 | Separate Digital Coating Thickness Gauge with F2 Standard Probe, Ferrous Model T |
| Elcometer 121 | Paint Inspection Gauge with Cross Hatch Cutters 6 x 1, 2 & 3mm and ISO (ASTM) Adhesive Tape, Top |
¹ Swedish Rust Standard ISO 8501, SIS055900 supplied in Metric Kit, US Standard SSPC VIS 1-01 and VIS-3 supplied in Imperial Kit
² Supplied with Elcometer 135C Bresle Test Patches (x50)
| Part Number | Description | Certificate | Metric | Imperial |
| YKIT-PROTECTIVE-5M | YKIT-PROTECTIVE-5E | Elcometer Protective Coatings Kit 5 |
|
| Dimensions | 575 x 475 x 205mm (22.64 x 18.70 x 8.07”) | ||
| Part Number | |
| Metric | Imperial |
| YKIT-PROTECTIVE-5M | YKIT-PROTECTIVE-5E |
| Description | Elcometer Protective Coatings Kit 5 |
| Certificate |
|
| Dimensions | 575 x 475 x 205mm (22.64 x 18.70 x 8.07”) |
AS 1580.108.2, AS 1580.408.4, AS 2331.1.4, AS 3894.3-B, AS 3894.6-A, AS 3894.6-C, AS 3894.6-D, AS 3894.9, AS/NZS 1580.107.3, AS/NZS 1580.108.1, ASTM B 499, ASTM D 1186-B, ASTM D 1400, ASTM D 2200, ASTM D 3359-B, ASTM D 4138-A, ASTM D 4414-A, ASTM D 4417-C, ASTM D 7091, ASTM E 376, ASTM E 797, ASTM G 12, BS 3900-C5-5B, BS 3900-C5-6A, BS 3900-C5-6B, BS 3900-E6, BS 5411-11, BS 5411-3, BS 5599, BS 7079-B4, BS 7079-C5, DIN 50981, DIN 50984, DIN 50986, ECCA T1, ECCA T6, EN 13523-1, EN 13523-6, EN 15317, IMO MSC.215(82), IMO MSC.244(83), ISO 1461, ISO 16276-2, ISO 19840, ISO 2063, ISO 2360, ISO 2409, ISO 2808-12, ISO 2808-1A, ISO 2808-5B, ISO 2808-6A, ISO 2808-6B, ISO 2808-7B, ISO 2808-7C, ISO 2808-7D, ISO 8501-1, ISO 8502-3, ISO 8502-4, ISO 8502-6, ISO 8502-9, ISO 8503-5, JIS K 5600-1-7, NACE RP0287, NF T30-038, NF T30-123, NF T30-124, NF T30-125, SANS 5772, SS 184159, SS 55900, SSPC Guide 15, SSPC PA 2, SSPC VIS 1, SSPC VIS 2, SSPC VIS 3, SSPC VIS 4, SSPC VIS 5, US Navy NSI 009-32, US Navy PPI 63101-000
Standards in grey have been superseded but are still recognised in some industries.
-
Elcometer Protective Coatings Kit 5 - Metric
A more comprehensive kit than kits 1-4, the Elcometer Protective Coating Inspection Kit 5 expands the range of instruments available to the protective coatings inspector. This has dimensions of 575 x 475 x 205mm.
- Dimensions: 575 x 475 x 205mm (22.64 x 18.70 x 8.07”)
- Part Number : YKIT-PROTECTIVE-5M
- Certification : No Certificate
- Part Number : YKIT-PROTECTIVE-5MC
- Certification : Calibration Certificate
-
Elcometer Protective Coatings Kit 5 - Imperial
A more comprehensive kit than kits 1-4, the Elcometer Protective Coating Inspection Kit 5 expands the range of instruments available to the protective coatings inspector. This has dimensions of 22.64 x 18.70 x 8.07”.
- Dimensions: 575 x 475 x 205mm (22.64 x 18.70 x 8.07”)
- Part Number : YKIT-PROTECTIVE-5E
- Certification : No Certificate
- Part Number : YKIT-PROTECTIVE-5EC
- Certification : Calibration Certificate
