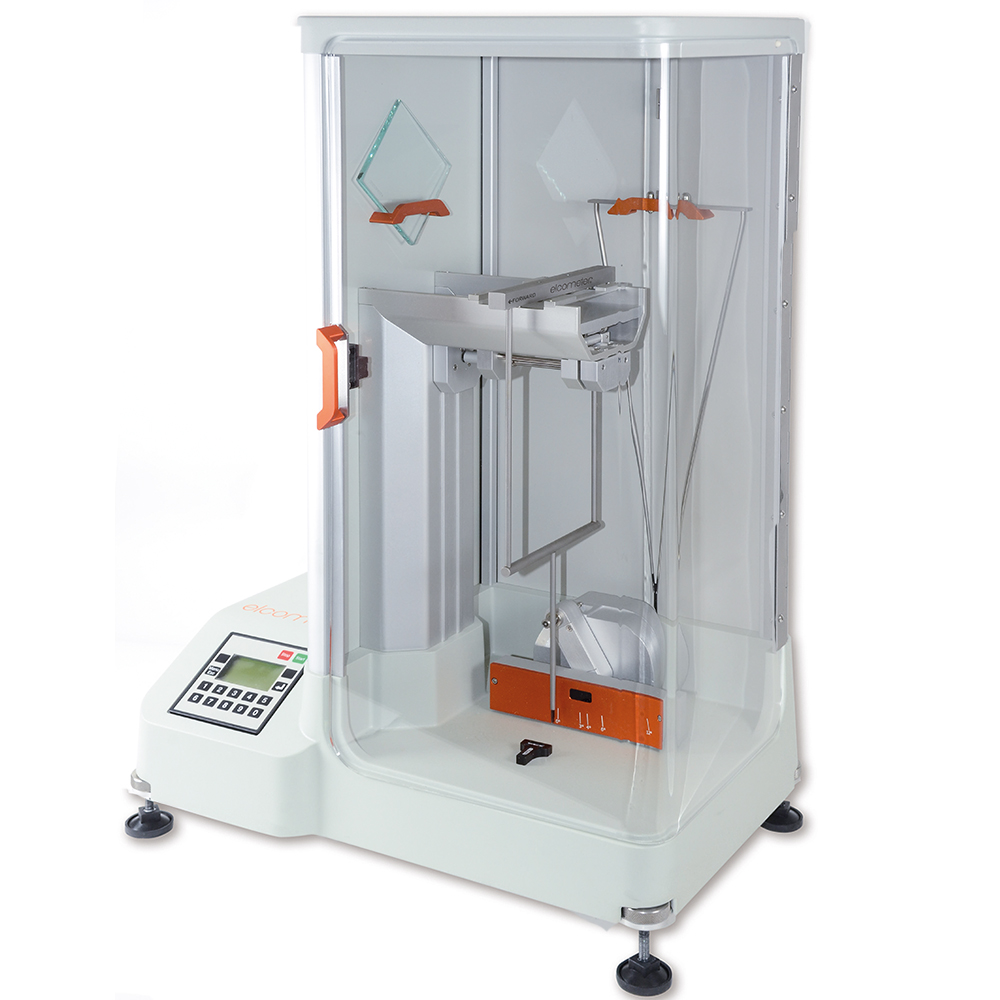

Elcometer 3045 Persoz & König Pendulum Hardness Tester - Discontinued
Discontinued Product – for servicing use only
The Elcometer 3045 Pendulum Hardness Tester provides reliable & repeatable measurements of coating hardness using either the Persoz or König pendulum testing method.
The Elcometer 3045 Persoz & König Pendulum Hardness Tester is equipped with a number of unique features designed to maximise repeatability and reproducibility of the pendulum hardness test method.
Using infrared technology, the Elcometer 3045 provides a fully automated Persoz or König pendulum hardness test with no human intervention ensuring accurate, repeatable results.
Simply fit the pendulum on to the loading pins, load the sample and close the door. The pendulum automatically moves to the start position, the sample table rises and the test begins.
The fully automated calibration procedure provides confidence in the test results. The Elcometer 3045 Persoz & König Pendulum Hardness Tester performs a full calibration routine using the glass calibration tile supplied; if the gauge is out of specification then, it automatically adjusts to meet the specified standard.
The Elcometer 3045 Persoz & König Pendulum Hardness Tester can be used in accordance with standards;
ASTM D 4366, BS 3900 E5, DIN 53157, ISO 1522, NF T30-016.
The sturdy and robust design provides a stable environment for tests ensuring repeatable and consistent coating hardness results. Compatible with ElcoMaster® software, measurements of coating hardness can be transferred via PC for further analysis and report generation.
Technical Specification
| Elcometer 3045 Persoz & König Pendulum Hardness Tester | ||
| Pendulum | Persoz Pendulum | König Pendulum |
| Oscillation Period | 1 second ±0.01 seconds | 1.4 seconds ±0.02 seconds |
| Measurement Deflection | 12° to 4° | 6° to 3° |
| Damping Time on Glass | 430 seconds ±15 seconds | 250 seconds ±10 seconds |
| Number of Oscillations | 430 ±15 oscillations | 172 to 185 oscillations |
| Maximum Specimen Panel Dimensions | 200 x 110 x 14mm (7.85 x 4.33 x 0.55”) | 500 x 330 x 760mm (19.7 x 13 x 29.9”) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) | |
| Instrument Weight | 17kg (37.5lb) | |
| Packing List | Elcometer 3045 Persoz & König Pendulum Tester, Glass Test Piece, Dual Axis Bubble Level, 20 x Glass Cleaning Wipes, Cleaning Cloth, 3 x Pin Release Wire, 2 x Arm Slide Wear Plate, Spare Fuse (315mA), Mains Leads: UK, EUR & US, RS232 Cable, ElcoMaster® Software, Test Certificate, User Guide (please order Pendulum separately) | |
Standards
ASTM D 4366, BS 3900 E5, DIN 53157, ISO 1522, NF T30-016
Standards in grey have been superseded but are still recognised in some industries.
