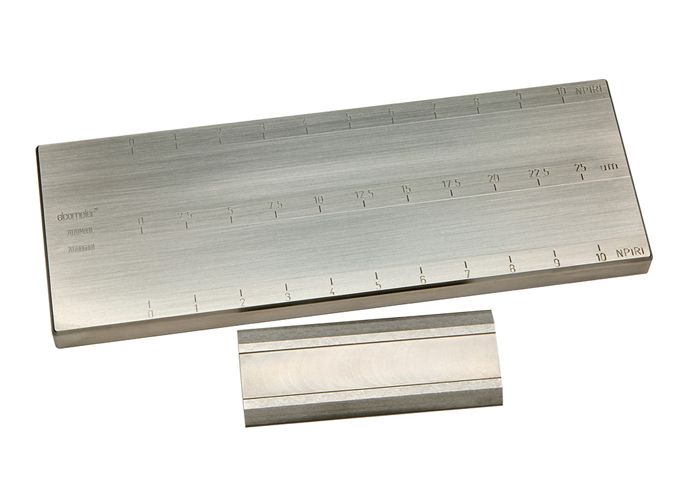

Elcometer 2070 NPIRI Fineness of Grind Gauge

  • Industrial Finishing
  • Laboratory & Physical Test
2070
how-to-use-fineness

The Elcometer 2070 NPIRI Fineness of Grind Gauge is used to determine particle size and the fineness of grind of particles in printing inks according to the National Printing Inks Research Institute (NPIRI) scale.

  • Summary

    • Summary

    • As ink particles are so fine the two grooves of the gauge have a gentle gradient allowing a scale of 2.5µm for better resolution.

      The groove width is 25mm (0.98”) and the groove length is 165mm (6.5”). The NPIRI scale is displayed alongside the microns scale. The NPIRI gauge and its scraper are made of hardened stainless steel.

  • Technical Information
    • Technical Specification
      Elcometer 2070 NPIRI Fineness of Grind Gauge
      Part Number   Model Range Graduation Certificate
      Metric Imperial   (μm) (mils) (μm) (mils)
      K0002070M001 K0US2070M001 Elcometer 2070 0 - 25 0 - 1 2.5μm / 1 NPIRI 0.1mil / 1 NPIRI Optional Calibration Certificate available
      Accuracy ±3µm (0.12mil) or ±5% whichever is the greater
      Packed Dimensions 220 x 80 x 12mm (8.6 x 3.1 x 0.5”)
      Packed Weight 2.2kg (4.8lb)
      Packing List Elcometer 2070 NPIRI Fineness of Grind Gauge, scraper, plastic case and operating instructions
      Part Number
      Metric K0002070M001
      Imperial K0US2070M001
      Model Elcometer 2070
      Certificate Optional Calibration Certificate available
      Range (μm) :    0 - 25
      (mils) :   0 - 1
      Graduation (μm) :    2.5μm / 1 NPIRI
      (mils) :   0.1mil / 1 NPIRI
      Accuracy ±3µm (0.12mil) or ±5% whichever is the greater
      Packed Dimensions 220 x 80 x 12mm (8.6 x 3.1 x 0.5”)
      Packed Weight 2.2kg (4.8lb)
      Packing List Elcometer 2070 NPIRI Fineness of Grind Gauge, scraper, plastic case and operating instructions
      ○ Optional Calibration Certificate available.
  • Standards
    • Standards
      Elcometer 2070 NPIRI Fineness of Grind Gauge

      ASTM D 1316

  • Downloads
    • Downloads

        • Elcometer 2070 NPIRI Fineness of Grind Gauge Multi-Lingual Instruction Manual

        • Elcometer 2070 NPIRI Fineness of Grind Gauge Datasheet

  • Part Numbers
    • Part Numbers
      Elcometer 2070 NPIRI Fineness of Grind Gauge
      • Elcometer 2070 NPIRI Fineness of Grind Gauge - Metric

        The Elcometer 2070 NPIRI Fineness of Grind Gauge is used to determine particle size and the fineness of grind of particles in printing inks according to the National Printing Inks Research Institute (NPIRI) scale. This gauge is supplied with metric measurements.

        • Part Number : K0002070M001
        • Certification : No Certificate
        • Part Number : K0002070M001C
        • Certification : Calibration Certificate
      • Elcometer 2070 NPIRI Fineness of Grind Gauge - Imperial

        The Elcometer 2070 NPIRI Fineness of Grind Gauge is used to determine particle size and the fineness of grind of particles in printing inks according to the National Printing Inks Research Institute (NPIRI) scale. This gauge is supplied with imperial measurements.

        • Part Number : K0US2070M001
        • Certification : No Certificate
        • Part Number : K0US2070M001C
        • Certification : Calibration Certificate
  • Accessories
    • Accessories
      Elcometer 2070 NPIRI Fineness of Grind Gauge
      • Part NumberKT002070N001

Welcome to Elcometer.tv
Your ultimate training channel

  • Home
  • Elcometer 2070 NPIRI Fineness of Grind Gauge

Elcometer 2070 NPIRI Fineness of Grind Gauge

  • Industrial Finishing
  • Laboratory & Physical Test

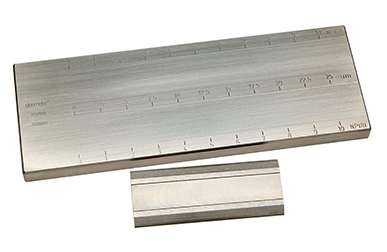

2070
how-to-use-fineness

The Elcometer 2070 NPIRI Fineness of Grind Gauge is used to determine particle size and the fineness of grind of particles in printing inks according to the National Printing Inks Research Institute (NPIRI) scale.

Summary

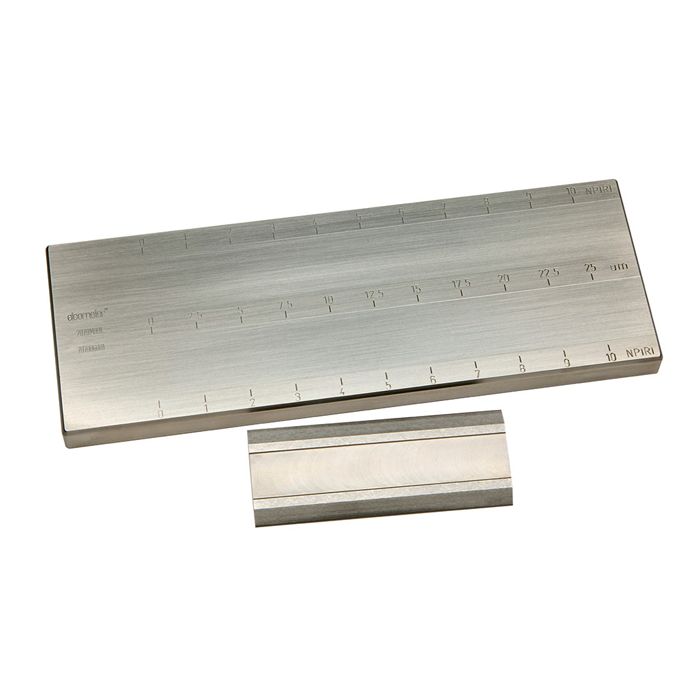

main product photo

Elcometer 2070 NPIRI Fineness of Grind Gauge

As ink particles are so fine the two grooves of the gauge have a gentle gradient allowing a scale of 2.5µm for better resolution.

The groove width is 25mm (0.98”) and the groove length is 165mm (6.5”). The NPIRI scale is displayed alongside the microns scale. The NPIRI gauge and its scraper are made of hardened stainless steel.

Downloads

    • Elcometer 2070 NPIRI Fineness of Grind Gauge Multi-Lingual Instruction Manual

    • Elcometer 2070 NPIRI Fineness of Grind Gauge Datasheet

Technical Specification
Elcometer 2070 NPIRI Fineness of Grind Gauge
Part Number   Model Range Graduation Certificate
Metric Imperial   (μm) (mils) (μm) (mils)
K0002070M001 K0US2070M001 Elcometer 2070 0 - 25 0 - 1 2.5μm / 1 NPIRI 0.1mil / 1 NPIRI Optional Calibration Certificate available
Accuracy ±3µm (0.12mil) or ±5% whichever is the greater
Packed Dimensions 220 x 80 x 12mm (8.6 x 3.1 x 0.5”)
Packed Weight 2.2kg (4.8lb)
Packing List Elcometer 2070 NPIRI Fineness of Grind Gauge, scraper, plastic case and operating instructions
Part Number
Metric K0002070M001
Imperial K0US2070M001
Model Elcometer 2070
Certificate Optional Calibration Certificate available
Range (μm) :    0 - 25
(mils) :   0 - 1
Graduation (μm) :    2.5μm / 1 NPIRI
(mils) :   0.1mil / 1 NPIRI
Accuracy ±3µm (0.12mil) or ±5% whichever is the greater
Packed Dimensions 220 x 80 x 12mm (8.6 x 3.1 x 0.5”)
Packed Weight 2.2kg (4.8lb)
Packing List Elcometer 2070 NPIRI Fineness of Grind Gauge, scraper, plastic case and operating instructions
○ Optional Calibration Certificate available.
Standards
Elcometer 2070 NPIRI Fineness of Grind Gauge

ASTM D 1316

Part Numbers
Elcometer 2070 NPIRI Fineness of Grind Gauge
  • Elcometer 2070 NPIRI Fineness of Grind Gauge - Metric

    The Elcometer 2070 NPIRI Fineness of Grind Gauge is used to determine particle size and the fineness of grind of particles in printing inks according to the National Printing Inks Research Institute (NPIRI) scale. This gauge is supplied with metric measurements.

    • Part Number : K0002070M001
    • Certification : No Certificate
    • Part Number : K0002070M001C
    • Certification : Calibration Certificate
  • Elcometer 2070 NPIRI Fineness of Grind Gauge - Imperial

    The Elcometer 2070 NPIRI Fineness of Grind Gauge is used to determine particle size and the fineness of grind of particles in printing inks according to the National Printing Inks Research Institute (NPIRI) scale. This gauge is supplied with imperial measurements.

    • Part Number : K0US2070M001
    • Certification : No Certificate
    • Part Number : K0US2070M001C
    • Certification : Calibration Certificate


Welcome to Elcometer.tv
Your ultimate training channel

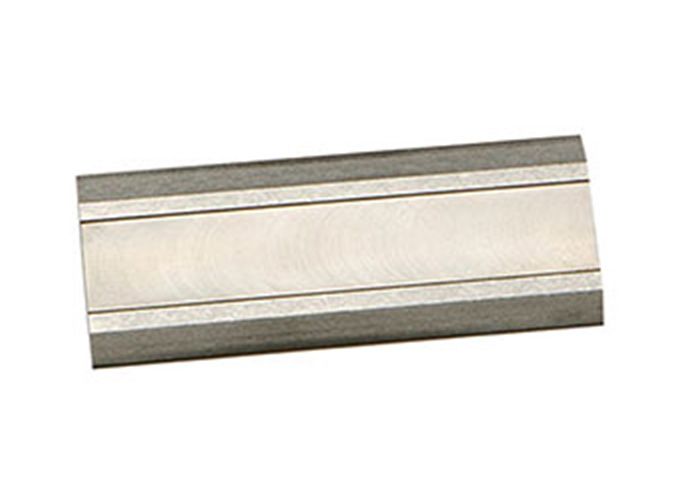

Accessories
Elcometer 2070 NPIRI Fineness of Grind Gauge
  • Part Number: KT002070N001
