Elcometer 1506-B Cylindrical Mandrel Bend Tester

  • Industrial Finishing
Elcometer_1506-B
1506-Cylindrical-Mandrel-Bend-Tester-in-use

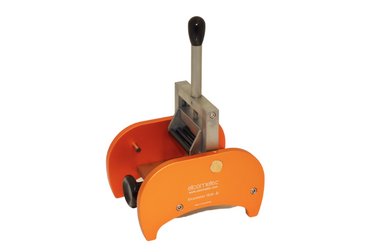

The Elcometer 1506-B Cylindrical Mandrel Bend Tester is robust and used to determine the elasticity, adhesion and elongation properties of cured coatings on sheet metal.

  • Summary

    • Summary

    • The frame has a bending lever with height-adjustable rollers and a sliding vice for clamping the sample which means the test pieces are bent perfectly and regularly on decreasing mandrels until the desired effect can be observed.

      The instrument can be adjusted to the diameter of the mandrel used and the mandrels are easily changed.

      A wide range of mandrels with metric and imperial diameters is available. Mandrels are not supplied with the instrument and can be ordered as a set or individually.


      Accessories for the original Elcometer 1506 Cylindrical Mandrel Bend Test are still available.

  • Key Features

    • Key Features

      Elcometer 1506-B Cylindrical Mandrel Bend Tester

      How to use a Cylindrical Mandrel Bend Tester

      Insert large diameter mandrel followed by the coated test panel, making sure that the painted area faces away from the mandrel.

      Tighten the vice by rotating the vice handle.

      With a smooth action pull the lever around the mandrel. Check coating for damage.

      Repeat as necessary with smaller diameter mandrels.

  • Technical Information
    • Technical Specification
      Elcometer 1506-B Cylindrical Mandrel Bend Tester
      Part Number Description
      K1506BM201 Elcometer 1506-B Cylindrical Mandrel Bend Tester
      Test Piece Width Maximum: 76.2mm (3”)
      Test Piece Length Maximum: 80 to 100mm (3.15 to 3.93”) depending on the size of the mandrel used
      Dimensions 320 x 147 x 130mm (12.6 x 5.8 x 5.1”)
      Weight 4kg (9lb)
      Packing List Elcometer 1506-B Cylindrical Mandrel Bend Tester and operating instructions
  • Standards
    • Standards
      Elcometer 1506-B Cylindrical Mandrel Bend Tester

      AS/NZS 1580.402.1, ASTM D 2485, ASTM D 522-B, ASTM D 1737, ISO 1519-2, JIS K 5600-5-1

      Standards in grey have been superseded but are still recognised in some industries


  • Downloads
    • Downloads

        • Elcometer 1506-B Cylindrical Mandrel Bend Tester Instruction Manual

        • Elcometer 1506-B Cylindrical Mandrel Bend Tester Datasheet

  • Part Numbers
    • Part Numbers
      Elcometer 1506-B Cylindrical Mandrel Bend Tester
      • Elcometer 1506-B Cylindrical Mandrel Bend Tester

        The Elcometer 1506-B Cylindrical Mandrel Bend Tester is robust and used to determine the elasticity, adhesion and elongation properties of cured coatings on sheet metal.

        • Part Number : K1506BM201
        • Certification : No Certificate
  • Accessories
    • Accessories
      Elcometer 1506-B Cylindrical Mandrel Bend Tester
      • Part NumberKTUS1506BF022
      • Part NumberKTUS1506BF023
      • Part NumberKTUS1506BF024
      • Part NumberKTUS1506BF025
      • Part NumberKTUS1506BF026
      • Part NumberKTUS1506BF027
      • Part NumberKT001506BP201
      • Part NumberKTUS1506BP201
      • Part NumberKT001506BF002
      • Part NumberKT001506BF003
      • Part NumberKT001506BF004
      • Part NumberKT001506BF005
      • Part NumberKT001506BF006
      • Part NumberKT001506BF007
      • Part NumberKT001506BF014
      • Part NumberKT001506BF015
      • Part NumberKT001506BF016
      • Part NumberKT001506BF017
      • Part NumberKT001506BF019
      • Part NumberKT001506BF020
      • Part NumberKT001506BF021
      • Part NumberKTUS1506BF028-1
      • Part NumberKT001506BF018
