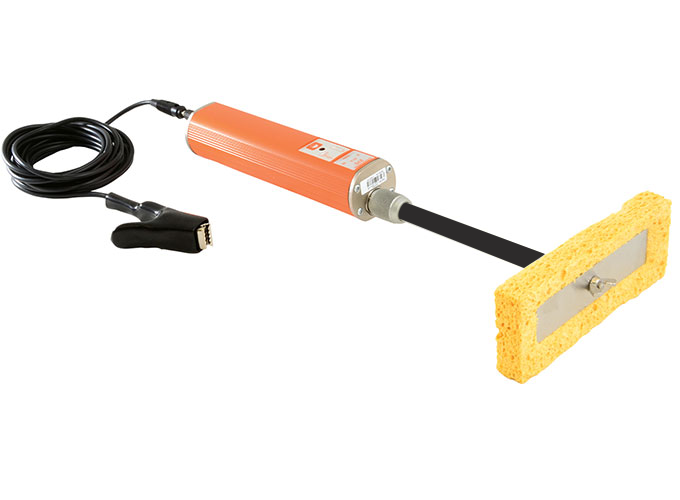

Elcometer 270 Pinhole Detector

Protective Coatings
Industrial Finishing

The Elcometer 270 Pinhole Detector range utilises the wet sponge technique and has been designed to set a new standard for wet sponge pinhole detectors.

Summary
- Summary
- The Elcometer 270 Pinhole Detector is a high quality, low voltage detector and is supplied with similar accessories to a high voltage spark tester.
  Supplied ready to use

  Automatic sensitivity calibration and voltage checks

  Low battery indicator

  Visual and audible alarms

  Integral and separate wand functionality

  A wide range of fully interchangeable wand accessories

  Easy release snag proof cables

  Large standard sponge

  An inspection kit for all your requirements is available.

Technical Information

Technical Specification

Elcometer 270 Pinhole Detector

	Elcometer 270/3 Pinhole Detector	Elcometer 270/4 Pinhole Detector	Certificate
Part Number	D270----3	D270----4
Part Number with Certificate	D270----3C	D270----4C
Voltage	9V and 90V	9V, 67.5V and 90V
Coating Range (Max)	500µm (20mils)	500µm (20mils)
Sensitivity	9V: 90kΩ ±5% 90V: 400kΩ ±5%	9V: 90kΩ ±5% 67.5V: 125kΩ ±5% 90V: 400kΩ ±5%
Battery Life (continuous use)	9V: up to 200 hours 90V: up to 80 hours	9V: up to 200 hours 67.5V: up to 100 hours 90V: up to 80 hours
Battery Type	3 x AA batteries (rechargeable batteries can also be used, but battery life will be reduced by up to 75%)
Accuracy of Setting	±5%
Dimensions	Without wand 210 x 42 x 37mm (8.3 x 1.7 x 1.5”) Standard wand 175mm (6.9”) long (including sponge)
Weight	610g (21oz) including wand, cable and batteries
Packing List	Pinhole Detector, standard wand and flat sponge, 4m (13’ 2”) return lead with crocodile clip, 3 x AA (LR1600) batteries and operating instructions

	Elcometer 270/3 Pinhole Detector	Elcometer 270/4 Pinhole Detector
Part Number	D270----3	D270----4
Certificate
Part Number with Certificate	D270----3C	D270----4C
Certificate
Voltage	9V and 90V	9V, 67.5V and 90V
Coating Range (Max)	500µm (20mils)	500µm (20mils)
Sensitivity	9V: 90kΩ ±5% 90V: 400kΩ ±5%	9V: 90kΩ ±5% 67.5V: 125kΩ ±5% 90V: 400kΩ ±5%
Battery Life (continuous use)	9V: up to 200 hours 90V: up to 80 hours	9V: up to 200 hours 67.5V: up to 100 hours 90V: up to 80 hours
Battery Type	3 x AA batteries (rechargeable batteries can also be used, but battery life will be reduced by up to 75%)
Accuracy of Setting	±5%
Dimensions	Without wand 210 x 42 x 37mm (8.3 x 1.7 x 1.5”) Standard wand 175mm (6.9”) long (including sponge)
Weight	610g (21oz) including wand, cable and batteries
Packing List	Pinhole Detector, standard wand and flat sponge, 4m (13’ 2”) return lead with crocodile clip, 3 x AA (LR1600) batteries and operating instructions

● Calibration Certificate supplied as standard.

Standards
- Standards

  Elcometer 270 Pinhole Detector

  AS 3894.2, ASTM D 5162-A, ASTM G6, ASTM G62-A, BS 7793-2, ISO 29601:2011, ISO 8289-A, ISO 14654, JIS K 6766, NACE RP 0188, NACE SP 0188, NACE TM0384
  Standards in grey have been superseded but are still recognised in some industries.
Downloads
- Downloads
  Elcometer 270 Pinhole Detector Multi-Lingual Instruction Manual

  Elcometer 270 Pinhole Detector Data Sheet

  Elcometer 270 Pinhole Detection Inspection Kit Data Sheet

  Elcometer 270 Wetting Agent - Kodak Photo-Flo Material Safety Data Sheet

  Elcometer 270 ILFORD Simplicity Black & White Film Wetting Agent Material Safety Data Sheet

  Elcometer 270 Pinhole Detector CE Declaration of Conformity

  Elcometer 270 Pinhole Detector UKCA Declaration of Conformity
Part Numbers
- Part Numbers

  Elcometer 270 Pinhole Detector
  No data found!!
  - Elcometer 270/3 Pinhole Detector

    Voltage: 9V and 90V

    Part Number : D270----3
  - Elcometer 270/3 Pinhole Detector with calibration certificate

    Voltage: 9V, 90V

    Part Number : D270----3C
  - Elcometer 270/4 Pinhole Detector

    Voltage: 9V, 67.5V and 90V

    Part Number : D270----4
  - Elcometer 270/4 Pinhole Detector with calibration certificate

    Voltage: 9V, 67.5V, 90V

    Part Number : D270----4C
Accessories
- Accessories

  Elcometer 270 Pinhole Detector
  - Elcometer 270 Pinhole Detection Inspection Kit

    Part Number: T27018191
  - Standard wand - A universal flat sponge to suit almost all applications

    Part Number: T27016867
  - Spare flat sponge set Pack of 3 sponges - 150 x 60 x 25mm (6 x 2.3 x 1”)

    Part Number: T27018050
  - Roller sponge wand - Ideal for large flat surface inspection

    Part Number: T27016960
  - Spare roller sponge

    Part Number: T27018051
  - Telescopic wand adaptor - with belt clip - extends to 1m(39”), ideal for floors or high areas

    Part Number: T27016998
  - Separate wand adaptor - with belt clip - converts the gauge into a separate pinhole detector

    Part Number: T27016999
  - Extension piece - 420mm (16.5”) extensions to expand operators reach. Additional extension pieces can be connected to each other.

    Part Number: T27016965
  - Earth signal return lead, 4m (13’)

    Part Number: T99916954
  - Earth signal return lead, 10m (32’)

    Part Number: T99916996
  - Wetting Agent - 50ml (1.7floz) bottle

    Part Number: T27018024
