Elcometer 224 Digital Surface Profile Gauge

  • Protective Coatings
Elcometer-224-Separate-Intro
Elcometer-224-Integral-Intro

The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.

  • Summary
    • Summary

    • Elcometer 224 Integral Surface Profile Gauge measuring blasted steel

      Accurate Surface Profile Measurements

      • Can be used in accordance with National and International Standards
      • Temperature stable measurements
      • Statistics are calculated and displayed in real time during inspection
      • Live and batch readings graph format for instant analysis
      • Measurement capability to ±5%
      Elcometer 22 Surface Profile Gauge with ElcoMaster Mobile

      A Powerful Surface Profile Gauge

      • User replaceable tough tungsten carbide tip, can be used for up to 20,000 surface profile readings
      • USB and Bluetooth® data output to iPhone¹ or Android™ devices
      • Measures surface profiles up to 500μm (20mils)
      • Review batch data or last 20 readings in a graph format
      • Integral & separate probe options for flat and convex² curved surface
      Elcometer-224-Measuring-Flat-Surface_1

      Efficient Inspections

      • Fast reading rate of 50+ per minute
      • Integral and separate probe versions to suit your application
      • Alpha numeric batch identification
      • Compatible with ElcoMaster® software and ElcoMaster® Mobile App
      • Powersave Mode with tap awake
      • Fast and reliable peak-to-valley surface profile measurement

      • Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)

      • Measures both average peak-to-valley and average maximum peak-to-valley height

      • Portable, rugged hand-held design is ideal for field use

        The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile meter provides the user with increasing functionality - from the entry level Elcometer 224 DModel B Surface Profile Gauge, to the top of the range Elcometer 224 Model T Surface Profile Gauge, with memory, alpha-numeric batching and Bluetooth® communication.

        Standard and armoured probes are available for the separate models, providing even greater measurement flexibility.  Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.

    • Key Features
      • Key Features

        Elcometer 224 Digital Surface Profile Gauge

        Elcometer 224 Surface Profile Gauge Screen

        User Friendly Gauge

        • Large buttons ideal for gloved hands
        • Easy to use menus in multiple languages
        • High contrast colour LCD with auto rotate
        • High and low reading limit indicators
        • Factory calibrated for immediate use
        Elcometer 224 Separate Suface Profile Gauge measuring a blasted pipe

        Durability in Tough Environments

        • Sealed, heavy duty and impact resistant
        • Dust and waterproof equivalent to IP64
        • Suitable for use in harsh environments
        • Scratch and solvent resistant display
        • Durable gauge and probe construction
        Elcometer 224 Integral Surface Profile Gauge measuring blasted steel

        A Reliable Surface Profile Gauge

        • Repeatable and reproducible profile measurements
        • 2 year gauge warranty³
        • Supplied with fully traceable Test Certificates
        • Batch & individual readings are date and time stamped

        3 Measurement Modes

        Whichever test method or Standard you are working to the Elcometer 224 Digital Surface Profile Gauge has a range of easy to use Measurement Modes.

        Custom Mode Screen on the Elcometer 224 Surface Profile GaugeCustom Mode

        In Custom mode, simply select to take either 5 or 10 profile readings per measurement then specify either the average, highest or lowest measurement of each set of readings to be displayed and saved into the batch memory4.

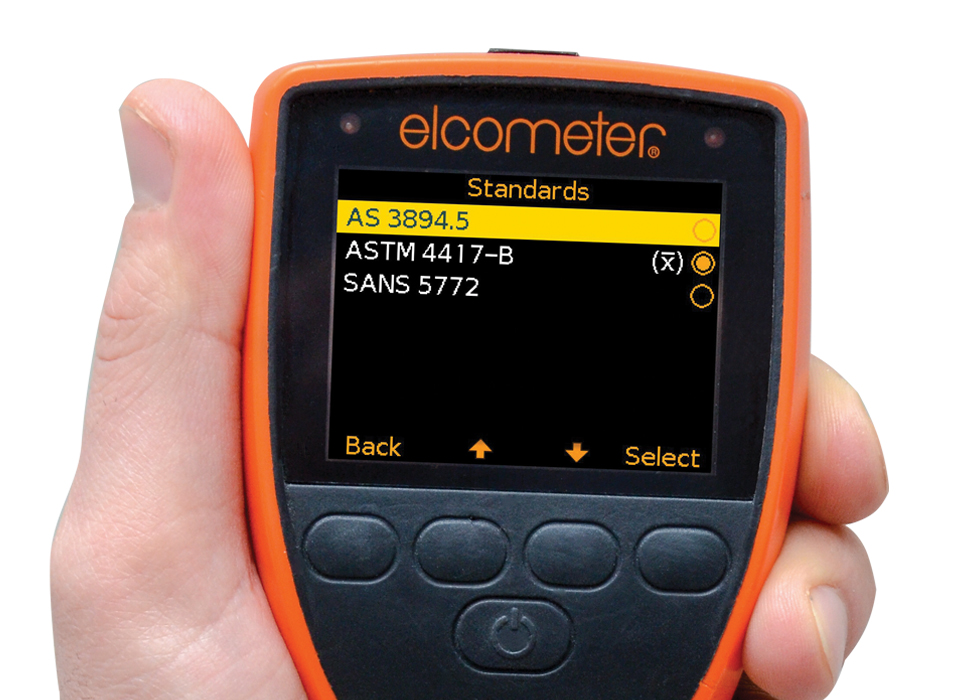

        Standards Mode Screen on the Elcometer 224 Surface Profile GaugeStandards Mode

        Select the International Standard you are working to and the Elcometer 224 Digital Surface Profile Gauge will automatically set the data collection method accordingly. When selecting ASTM D 4417, you can even choose if the gauge stores the average or highest reading as the measurement.

        Immediate Mode Screen on the Elcometer 224 Surface Profile GaugeImmediate Mode

        Take individual peak-to-valley measurements and save into the batch memory4. The Elcometer 224 Surface Profile Meter automatically calculates and displays key statistics whilst you’re inspecting, and you can set limits so the gauge will alarm whenever the reading is outside a predefined acceptable range.

        How to Measure Surface Profile

        Hot Measure Surface Profile

        1. Ensure probe is 90° to substrate to ensure accurate readings and calibrate the gauge on a glass zero tile.

        2. To take one spot measurement, take either 5 or 10 readings within a 100mm (4”) diameter area.

        3. The measurement displayed is either the average peak-to-valley height or the maximum reading of the 5 or 10 readings, depending on which measurement mode you have selected.

        4. To establish the average surface profile of an area, record 5 spot measurements for each 1m x 1m (3ft x 3ft) area.

        Wireless Connectivity

        224-wireless

        Instantly transfer readings, statistics, and limits; via USB or Bluetooth®; to your PC or mobile device, using ElcoMaster® or your own software application, creating professional inspection reports in minutes.

        Fast, accurate and very user friendly, the Elcometer 224 Surface Profile Gauge is available with or without memory and Bluetooth®.

        1Compatible with iPod, iPhone and iPad.

        2 Applicable Patents: GB2505193, US9261345

        3The Elcometer 224 Surface Profile Gauge is supplied with a 1 year warranty against manufacturing defects. The warranty can be extended free of charge to 2 years within 60 days of purchase

        4 Model T only



    • Product Features
      • Product Features
        Elcometer 224 Digital Surface Profile Gauge
          Model B Model T
        Fast, accurate reading rate; 50+ readings per minute1
        Repeatable & reproducible measurements
        Easy to use menu structure; in 30+ languages
        Tough, impact, waterproof & dust resistant; equivalent to IP64
        Bright colour screen; with permanent backlight
        Scratch and solvent resistant display; 2.4" (6cm) TFT
        Large positive feedback buttons
        Flat & convex surfaces2
        USB power supply; via PC
        Test certificate
        2 year gauge warranty3
        Automatic rotating display; 0°, 90°, 180° & 270°
        Ambient light sensor; with adjustable auto brightness
        Emergency Light Mode
        Gauge software updates4; via ElcoMaster® software
        Data Output
        USB; to computer
        Bluetooth®: to computer, Android™ & iOS5 devices
        On screen statistics
        Number of readings, η; Mean (average), x ; Standard deviation, σ; Highest reading, Hi; Lowest reading, Lo; Coefficient of variation, CV%
        High & low limits; definable audible & visual alarms
        Number above high limit;
        Number below low limit;
        ElcoMaster® software & USB cable
        Date and time stamp for each reading
        Replaceable screen protectors
        Protective case
        Plastic transit case
        On screen calibration instructions; in 30+ languages
        Measurement Range
        0-500μm (0-20mils)
        0-500μm (0-20mils)
        Number of batches
        2,500
        Gauge memory; number of readings
        Last 5
        150,000
        Delete last reading 6
        Limits; user definable audible & visual pass/fail warnings
        Gauge (g) or gauge & batch specific (gb) limits
        gb
        Batch types; normal, counted average
        Review, clear & delete batches
        Copy batches and calibration settings
        Alpha-numeric batch names; user definable on the gauge
        Fixed Batch Size Mode; with batch linking
        Trend graph; last 20 readings
        Review batch graph

        1 Up to 25 readings per minute for the convex probe

        2 Applicable Patents: GB2505193, US9261345

        3 The Elcometer 224 is supplied with a 1 year warranty against manufacturing defects. The warranty can be extended free of charge to 2 years within 60 days of purchase via www.elcometer.com. Elcometer 224 probes are covered by a 1 year warranty.

        4 Internet connection required

        5 Visit www.elcometer.com/sdk to find out how to integrate Elcometer’s MFi certified products to your App.

        6 Up to the last 5 readings can be deleted (Model B)

    • Technical Information
      • Technical Specification
        Elcometer 224 Digital Surface Profile Gauge
        Part Number Description Certificate
        Integral Gauge Separate Gauge1
        E224C-BI E224C-BS Elcometer 224 Model B Integral Digital Surface Profile Gauge
        Test Certificate supplied as standard
        E224C-TI E224C-TS Elcometer 224 Model T Integral Digital Surface Profile Gauge
        Test Certificate supplied as standard
        Display Information 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels
        Battery Type 2 x AA batteries, rechargeable batteries can also be used
        Battery Life Approximately 24 hours of continuous use at 1 reading per second2
        Minimum Headroom Integral: 185mm (7.3”)
        Separate: See probe technical specification
        Dimensions Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”)
        Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)
        Weight Integral Gauge (including batteries): 218g (7.69oz)
        Separate Gauge (including batteries): 161g (5.68oz)
        Measurement Range 0-500μm (0-20mils)
        Probe Tip Tungsten carbide tip 60° angle
        Tip Radius 50μm (2mil)
        Operating Temperature -10 to 50°C (14 to 122°F)
        Storage Temperature -10 to 60°C (14 to 140°F)
        Accuracy3 ±5% or ±5μm (±0.2mil)
        Resolution 1μm (0.1mil);
        Packing List Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T)
        Integral Gauge Separate Gauge1 Description
        E224C-BI E224C-BS Elcometer 224 Model B Integral Digital Surface Profile Gauge
        Certificate
        Test Certificate supplied as standard
        E224C-TI E224C-TS Elcometer 224 Model T Integral Digital Surface Profile Gauge
        Certificate
        Test Certificate supplied as standard
        Display Information 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels
        Battery Type 2 x AA batteries, rechargeable batteries can also be used
        Battery Life Approximately 24 hours of continuous use at 1 reading per second2
        Minimum Headroom Integral: 185mm (7.3”)
        Separate: See probe technical specification
        Dimensions Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”)
        Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)
        Weight Integral Gauge (including batteries): 218g (7.69oz)
        Separate Gauge (including batteries): 161g (5.68oz)
        Measurement Range 0-500μm (0-20mils)
        Probe Tip Tungsten carbide tip 60° angle
        Tip Radius 50μm (2mil)
        Operating Temperature -10 to 50°C (14 to 122°F)
        Storage Temperature -10 to 60°C (14 to 140°F)
        Accuracy3 ±5% or ±5μm (±0.2mil)
        Resolution 1μm (0.1mil);
        Packing List Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T)
        1Probes are supplied separately
        2Using default settings & lithium batteries, alkaline or rechargeable batteries may differ
        3 Whichever is the greater
        4 For separate gauges, the test foils, glass zero tile and probe protection cap are supplied with the separate probe.
    • Standards
      • Standards
        Elcometer 224 Digital Surface Profile Gauge

        ASTM D 4417-B, SANS 5772, SSPC PA 17, US Navy NSI 009-32, US Navy PPI 63101-000

    • Downloads
      • Downloads
        • Elcometer 224 Digital Surface Profile Gauge Multi-Lingual Instruction Manual

        • Elcometer 224 Convex Surface Profile Probe Multi-Lingual Instruction Manual

        • Elcometer 224 Digital Surface Profile Gauge Datasheet

        • Elcometer 224 Model B Digital Surface Profile Gauge Declaration of Conformity

        • Elcometer 224 Model T Digital Surface Profile Gauge Declaration of Conformity

    • Part Numbers
      • Part Numbers
        Elcometer 224 Digital Surface Profile Gauge
        • Elcometer 224 Model B Integral Digital Surface Profile Gauge

          Elcometer 224 Model B Digital Surface Profile Gauge, with a built in Tungsten carbide tip for measuring on flat surfaces



          • Model: Model B
          • Probe Tip: Tungsten carbide tip 60° angle
          • Gauge Option: Integral
          • Part Number : E224C-BI
          • Certification : Test Certificate
          • Part Number : E224C-BIC
          • Certification : Calibration Certificate
        • Elcometer 224 Model T Integral Digital Surface Profile Gauge

          Elcometer 224 Model T Digital Surface Profile Gauge, with a built in Tungsten carbide tip for measuring on flat surfaces. With memory, alpha-numeric batching and Bluetooth® communication.




          • Model: Model T
          • Probe Tip: Tungsten carbide tip 60° angle
          • Gauge Option: Integral
          • Part Number : E224C-TI
          • Certification : Test Certificate
          • Part Number : E224C-TIC
          • Certification : Calibration Certificate
        • Elcometer 224 Model B Separate Digital Surface Profile Gauge

          Elcometer 224 Model B Separate Digital Surface Profile Gauge, with use of the flat and convex surface profile probes.

          • Model: Model B
          • Probe Tip: Tungsten carbide tip 60° angle
          • Gauge Option: Separate
          • Part Number : E224C-BS
          • Certification : Test Certificate
          • Part Number : E224C-BSC
          • Certification : Calibration Certificate
        • Elcometer 224 Model T Separate Digital Surface Profile Gauge

          Elcometer 224 Model T Separate Digital Surface Profile Gauge, with use of the flat and convex surface profile probes. With memory, alpha-numeric batching and Bluetooth® communication.

          • Model: Model T
          • Probe Tip: Tungsten carbide tip 60° angle
          • Gauge Option: Separate
          • Part Number : E224C-TS
          • Certification : Test Certificate
          • Part Number : E224C-TSC
          • Certification : Calibration Certificate
    • Accessories
      • Accessories
        Elcometer 224 Digital Surface Profile Gauge
        • Part NumberT99921325
        • Part NumberT22419793
        • Part NumberT22420072
        • Part NumberT22421882C
        • Part NumberT99924797
        • Part NumberT99922341
        • Part NumberT22420053
        • Part NumberT22420095
        • Part NumberT45622371
        • Part NumberT224C500US
        • Part NumberT224C500UARM
        • Part NumberT224C500UX
        • Part NumberT224C500UXARM

    Elcometer 224 Digital Surface Profile Gauge

    • Protective Coatings
    Elcometer-224-Separate-Intro
    Elcometer-224-Integral-Intro

    The Elcometer 224 Digital Surface Profile Gauge provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces.

    Elcometer 224 Integral Surface Profile Gauge measuring blasted steel

    Accurate Surface Profile Measurements

    • Can be used in accordance with National and International Standards
    • Temperature stable measurements
    • Statistics are calculated and displayed in real time during inspection
    • Live and batch readings graph format for instant analysis
    • Measurement capability to ±5%
    Elcometer 22 Surface Profile Gauge with ElcoMaster Mobile

    A Powerful Surface Profile Gauge

    • User replaceable tough tungsten carbide tip, can be used for up to 20,000 surface profile readings
    • USB and Bluetooth® data output to iPhone¹ or Android™ devices
    • Measures surface profiles up to 500μm (20mils)
    • Review batch data or last 20 readings in a graph format
    • Integral & separate probe options for flat and convex² curved surface
    Elcometer-224-Measuring-Flat-Surface_1

    Efficient Inspections

    • Fast reading rate of 50+ per minute
    • Integral and separate probe versions to suit your application
    • Alpha numeric batch identification
    • Compatible with ElcoMaster® software and ElcoMaster® Mobile App
    • Powersave Mode with tap awake

    Summary

    Elcometer 224 Digital Surface Profile Gauge

    • Fast and reliable peak-to-valley surface profile measurement

    • Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)

    • Measures both average peak-to-valley and average maximum peak-to-valley height

    • Portable, rugged hand-held design is ideal for field use

      The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile meter provides the user with increasing functionality - from the entry level Elcometer 224 DModel B Surface Profile Gauge, to the top of the range Elcometer 224 Model T Surface Profile Gauge, with memory, alpha-numeric batching and Bluetooth® communication.

      Standard and armoured probes are available for the separate models, providing even greater measurement flexibility.  Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.

      Downloads
      • Elcometer 224 Digital Surface Profile Gauge Multi-Lingual Instruction Manual

      • Elcometer 224 Convex Surface Profile Probe Multi-Lingual Instruction Manual

      • Elcometer 224 Digital Surface Profile Gauge Datasheet

      • Elcometer 224 Model B Digital Surface Profile Gauge Declaration of Conformity

      • Elcometer 224 Model T Digital Surface Profile Gauge Declaration of Conformity

      Key Features

      Elcometer 224 Digital Surface Profile Gauge

      Elcometer 224 Surface Profile Gauge Screen

      User Friendly Gauge

      • Large buttons ideal for gloved hands
      • Easy to use menus in multiple languages
      • High contrast colour LCD with auto rotate
      • High and low reading limit indicators
      • Factory calibrated for immediate use
      Elcometer 224 Separate Suface Profile Gauge measuring a blasted pipe

      Durability in Tough Environments

      • Sealed, heavy duty and impact resistant
      • Dust and waterproof equivalent to IP64
      • Suitable for use in harsh environments
      • Scratch and solvent resistant display
      • Durable gauge and probe construction
      Elcometer 224 Integral Surface Profile Gauge measuring blasted steel

      A Reliable Surface Profile Gauge

      • Repeatable and reproducible profile measurements
      • 2 year gauge warranty³
      • Supplied with fully traceable Test Certificates
      • Batch & individual readings are date and time stamped

      3 Measurement Modes

      Whichever test method or Standard you are working to the Elcometer 224 Digital Surface Profile Gauge has a range of easy to use Measurement Modes.

      Custom Mode Screen on the Elcometer 224 Surface Profile GaugeCustom Mode

      In Custom mode, simply select to take either 5 or 10 profile readings per measurement then specify either the average, highest or lowest measurement of each set of readings to be displayed and saved into the batch memory4.

      Standards Mode Screen on the Elcometer 224 Surface Profile GaugeStandards Mode

      Select the International Standard you are working to and the Elcometer 224 Digital Surface Profile Gauge will automatically set the data collection method accordingly. When selecting ASTM D 4417, you can even choose if the gauge stores the average or highest reading as the measurement.

      Immediate Mode Screen on the Elcometer 224 Surface Profile GaugeImmediate Mode

      Take individual peak-to-valley measurements and save into the batch memory4. The Elcometer 224 Surface Profile Meter automatically calculates and displays key statistics whilst you’re inspecting, and you can set limits so the gauge will alarm whenever the reading is outside a predefined acceptable range.

      How to Measure Surface Profile

      Hot Measure Surface Profile

      1. Ensure probe is 90° to substrate to ensure accurate readings and calibrate the gauge on a glass zero tile.

      2. To take one spot measurement, take either 5 or 10 readings within a 100mm (4”) diameter area.

      3. The measurement displayed is either the average peak-to-valley height or the maximum reading of the 5 or 10 readings, depending on which measurement mode you have selected.

      4. To establish the average surface profile of an area, record 5 spot measurements for each 1m x 1m (3ft x 3ft) area.

      Wireless Connectivity

      224-wireless

      Instantly transfer readings, statistics, and limits; via USB or Bluetooth®; to your PC or mobile device, using ElcoMaster® or your own software application, creating professional inspection reports in minutes.

      Fast, accurate and very user friendly, the Elcometer 224 Surface Profile Gauge is available with or without memory and Bluetooth®.

      1Compatible with iPod, iPhone and iPad.

      2 Applicable Patents: GB2505193, US9261345

      3The Elcometer 224 Surface Profile Gauge is supplied with a 1 year warranty against manufacturing defects. The warranty can be extended free of charge to 2 years within 60 days of purchase

      4 Model T only



      Product Features
      Elcometer 224 Digital Surface Profile Gauge
        Model B Model T
      Fast, accurate reading rate; 50+ readings per minute1
      Repeatable & reproducible measurements
      Easy to use menu structure; in 30+ languages
      Tough, impact, waterproof & dust resistant; equivalent to IP64
      Bright colour screen; with permanent backlight
      Scratch and solvent resistant display; 2.4" (6cm) TFT
      Large positive feedback buttons
      Flat & convex surfaces2
      USB power supply; via PC
      Test certificate
      2 year gauge warranty3
      Automatic rotating display; 0°, 90°, 180° & 270°
      Ambient light sensor; with adjustable auto brightness
      Emergency Light Mode
      Gauge software updates4; via ElcoMaster® software
      Data Output
      USB; to computer
      Bluetooth®: to computer, Android™ & iOS5 devices
      On screen statistics
      Number of readings, η; Mean (average), x ; Standard deviation, σ; Highest reading, Hi; Lowest reading, Lo; Coefficient of variation, CV%
      High & low limits; definable audible & visual alarms
      Number above high limit;
      Number below low limit;
      ElcoMaster® software & USB cable
      Date and time stamp for each reading
      Replaceable screen protectors
      Protective case
      Plastic transit case
      On screen calibration instructions; in 30+ languages
      Measurement Range
      0-500μm (0-20mils)
      0-500μm (0-20mils)
      Number of batches
      2,500
      Gauge memory; number of readings
      Last 5
      150,000
      Delete last reading 6
      Limits; user definable audible & visual pass/fail warnings
      Gauge (g) or gauge & batch specific (gb) limits
      gb
      Batch types; normal, counted average
      Review, clear & delete batches
      Copy batches and calibration settings
      Alpha-numeric batch names; user definable on the gauge
      Fixed Batch Size Mode; with batch linking
      Trend graph; last 20 readings
      Review batch graph

      1 Up to 25 readings per minute for the convex probe

      2 Applicable Patents: GB2505193, US9261345

      3 The Elcometer 224 is supplied with a 1 year warranty against manufacturing defects. The warranty can be extended free of charge to 2 years within 60 days of purchase via www.elcometer.com. Elcometer 224 probes are covered by a 1 year warranty.

      4 Internet connection required

      5 Visit www.elcometer.com/sdk to find out how to integrate Elcometer’s MFi certified products to your App.

      6 Up to the last 5 readings can be deleted (Model B)

      Technical Specification
      Elcometer 224 Digital Surface Profile Gauge
      Part Number Description Certificate
      Integral Gauge Separate Gauge1
      E224C-BI E224C-BS Elcometer 224 Model B Integral Digital Surface Profile Gauge
      Test Certificate supplied as standard
      E224C-TI E224C-TS Elcometer 224 Model T Integral Digital Surface Profile Gauge
      Test Certificate supplied as standard
      Display Information 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels
      Battery Type 2 x AA batteries, rechargeable batteries can also be used
      Battery Life Approximately 24 hours of continuous use at 1 reading per second2
      Minimum Headroom Integral: 185mm (7.3”)
      Separate: See probe technical specification
      Dimensions Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”)
      Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)
      Weight Integral Gauge (including batteries): 218g (7.69oz)
      Separate Gauge (including batteries): 161g (5.68oz)
      Measurement Range 0-500μm (0-20mils)
      Probe Tip Tungsten carbide tip 60° angle
      Tip Radius 50μm (2mil)
      Operating Temperature -10 to 50°C (14 to 122°F)
      Storage Temperature -10 to 60°C (14 to 140°F)
      Accuracy3 ±5% or ±5μm (±0.2mil)
      Resolution 1μm (0.1mil);
      Packing List Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T)
      Integral Gauge Separate Gauge1 Description
      E224C-BI E224C-BS Elcometer 224 Model B Integral Digital Surface Profile Gauge
      Certificate
      Test Certificate supplied as standard
      E224C-TI E224C-TS Elcometer 224 Model T Integral Digital Surface Profile Gauge
      Certificate
      Test Certificate supplied as standard
      Display Information 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels
      Battery Type 2 x AA batteries, rechargeable batteries can also be used
      Battery Life Approximately 24 hours of continuous use at 1 reading per second2
      Minimum Headroom Integral: 185mm (7.3”)
      Separate: See probe technical specification
      Dimensions Integral: 168 x 73 x 37mm (5.61 x 2.87 x 1.46”)
      Separate: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)
      Weight Integral Gauge (including batteries): 218g (7.69oz)
      Separate Gauge (including batteries): 161g (5.68oz)
      Measurement Range 0-500μm (0-20mils)
      Probe Tip Tungsten carbide tip 60° angle
      Tip Radius 50μm (2mil)
      Operating Temperature -10 to 50°C (14 to 122°F)
      Storage Temperature -10 to 60°C (14 to 140°F)
      Accuracy3 ±5% or ±5μm (±0.2mil)
      Resolution 1μm (0.1mil);
      Packing List Elcometer 224 Digital Surface Profile Gauge, glass zero tile4, 2 x calibration foils4, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap4, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T)
      1Probes are supplied separately
      2Using default settings & lithium batteries, alkaline or rechargeable batteries may differ
      3 Whichever is the greater
      4 For separate gauges, the test foils, glass zero tile and probe protection cap are supplied with the separate probe.
      Standards
      Elcometer 224 Digital Surface Profile Gauge

      ASTM D 4417-B, SANS 5772, SSPC PA 17, US Navy NSI 009-32, US Navy PPI 63101-000

      Part Numbers
      Elcometer 224 Digital Surface Profile Gauge
      • Elcometer 224 Model B Integral Digital Surface Profile Gauge

        Elcometer 224 Model B Digital Surface Profile Gauge, with a built in Tungsten carbide tip for measuring on flat surfaces



        • Model: Model B
        • Probe Tip: Tungsten carbide tip 60° angle
        • Gauge Option: Integral
        • Part Number : E224C-BI
        • Certification : Test Certificate
        • Part Number : E224C-BIC
        • Certification : Calibration Certificate
      • Elcometer 224 Model T Integral Digital Surface Profile Gauge

        Elcometer 224 Model T Digital Surface Profile Gauge, with a built in Tungsten carbide tip for measuring on flat surfaces. With memory, alpha-numeric batching and Bluetooth® communication.




        • Model: Model T
        • Probe Tip: Tungsten carbide tip 60° angle
        • Gauge Option: Integral
        • Part Number : E224C-TI
        • Certification : Test Certificate
        • Part Number : E224C-TIC
        • Certification : Calibration Certificate
      • Elcometer 224 Model B Separate Digital Surface Profile Gauge

        Elcometer 224 Model B Separate Digital Surface Profile Gauge, with use of the flat and convex surface profile probes.

        • Model: Model B
        • Probe Tip: Tungsten carbide tip 60° angle
        • Gauge Option: Separate
        • Part Number : E224C-BS
        • Certification : Test Certificate
        • Part Number : E224C-BSC
        • Certification : Calibration Certificate
      • Elcometer 224 Model T Separate Digital Surface Profile Gauge

        Elcometer 224 Model T Separate Digital Surface Profile Gauge, with use of the flat and convex surface profile probes. With memory, alpha-numeric batching and Bluetooth® communication.

        • Model: Model T
        • Probe Tip: Tungsten carbide tip 60° angle
        • Gauge Option: Separate
        • Part Number : E224C-TS
        • Certification : Test Certificate
        • Part Number : E224C-TSC
        • Certification : Calibration Certificate

      Accessories
      Elcometer 224 Digital Surface Profile Gauge
      • Part Number: T99921325
      • Part Number: T22419793
      • Part Number: T22420072
      • Part Number: T22421882C
      • Part Number: T99924797
      • Part Number: T99922341
      • Part Number: T22420053
      • Part Number: T22420095
      • Part Number: T45622371
      • Part Number: T224C500US
      • Part Number: T224C500UARM
      • Part Number: T224C500UX
      • Part Number: T224C500UXARM
