Grounding Mats

  • Protective Coatings

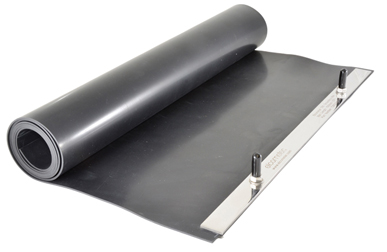

Grounding-Mat-intro_7

Grounding mats are ideal for use when testing on ungrounded pipes.

  • Summary
    • Summary

    • The conductive rubber mat is wrapped around the coated pipe and connected to both the grounding pin (supplied separately) and the signal return lead.

  • Technical Information
    • Technical Specification
      Grounding Mats
  • Part Numbers
    • Part Numbers
      Grounding Mats
      • Grounding mat for pipe diameters up to 9” (NPS)/ 229mm (DN)
        • Part Number : T28022637-1
        • Certification : No Certificate
      • Grounding mat for pipe diameters up to 18” (NPS)/ 457mm (DN)
        • Part Number : T28022637-2
        • Certification : No Certificate
      • Grounding Mat for pipe diameters up to 30” (NPS)/ 762mm (DN)
        • Part Number : T28022637-3
        • Certification : No Certificate
      • Grounding mat for pipe diameters up to 42” (NPS)/ 1067mm (DN)
        • Part Number : T28022637-4
        • Certification : No Certificate
      • Grounding pin; 60cm (23.5”) long
        • Part Number : T28022748
        • Certification : No Certificate
      • 10m (32’) earth lead, clips each end (for use with the grounding mat)
        • Part Number : T28022749
        • Certification : No Certificate
      • 10m (32’) earth lead, clip / Elcometer 280 connector
        • Part Number : T28022750
        • Certification : No Certificate
