Elcometer 4361 Spiral Bar Coaters

  • Industrial Finishing
  • Laboratory & Physical Test
4361-intro-1

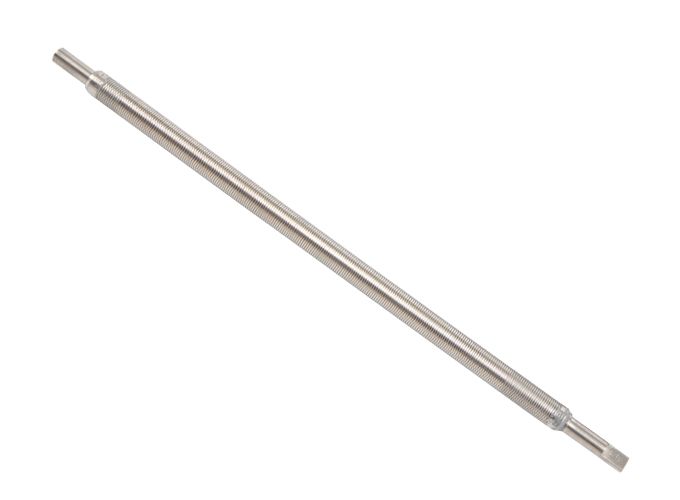

Made of stainless steel and consisting of a cylindrical bar wound with stainless steel wire, the Elcometer 4361 Spiral Bar Coaters are used to apply a predetermined thickness for coatings with high levelling characteristics.

  • Summary
    • Summary

      • A wide range of different wire diameters provides a range of measures for coating thicknesses from 4 to 500μm (0.157 to 19.685mils). Other wire diameters are available on request up to a maximum of 500μm (19.685mils).
      • 2 standard bar widths are available,140mm (5.5”) or 250mm (9.8”), allowing the user to apply the correct film width dependent on the substrate or test chart width.

      Ideal for use with the Elcometer 4340 Motorised Film Applicators.


  • Technical Information
    • Technical Specification
      Elcometer 4361 Spiral Bar Coaters

      Bar Width 140mm (5.5”)
      Part Number Model Coating Thickness Part Number Model Coating Thickness
          μm mils     μm mils
      K0004361P001 Elcometer 4361/1 Spiral Bar Coater 4 0.157 K0004361P014 Elcometer 4361/14 Spiral Bar Coater 50 1.968
      K0004361P002 Elcometer 4361/2 Spiral Bar Coater 6 0.236 K0004361P020 Elcometer 4361/20 Spiral Bar Coater 80 3.149
      K0004361P003 Elcometer 4361/3 Spiral Bar Coater 8 0.315 K0004361P021 Elcometer 4361/21 Spiral Bar Coater 90 3.543
      K0004361P004 Elcometer 4361/4 Spiral Bar Coater 10 0.393 K0004361P022 Elcometer 4361/22 Spiral Bar Coater 100 3.937
      K0004361P005 Elcometer 4361/5 Spiral Bar Coater 12 0.472 K0004361P023 Elcometer 4361/23 Spiral Bar Coater 110 4.330
      K0004361P006 Elcometer 4361/6 Spiral Bar Coater 16 0.630 K0004361P024 Elcometer 4361/24 Spiral Bar Coater 120 4.724
      K0004361P007 Elcometer 4361/7 Spiral Bar Coater 20 0.787 K0004361P027 Elcometer 4361/27 Spiral Bar Coater 150 5.905
      K0004361P008 Elcometer 4361/8 Spiral Bar Coater 26 1.024 K0004361P029 Elcometer 4361/29 Spiral Bar Coater 175 6.890
      K0004361P009 Elcometer 4361/9 Spiral Bar Coater 30 1.181 K0004361P030 Elcometer 4361/30 Spiral Bar Coater 200 7.874
      K0004361P010 Elcometer 4361/10 Spiral Bar Coater 34 1.338 K0004361P031 Elcometer 4361/31 Spiral Bar Coater 300 11.811
      K0004361P012 Elcometer 4361/12 Spiral Bar Coater 40 1.574 K0004361P033 Elcometer 4361/33 Spiral Bar Coater 500 19.685
      K0004361P013 Elcometer 4361/13 Spiral Bar Coater 46 1.811
      Bar Width 140mm (5.5”)
      Part Number K0004361P001
      Model Elcometer 4361/1 Spiral Bar Coater
      Coating Thickness
      μm mils
      4 0.157
      Part Number K0004361P002
      Model Elcometer 4361/2 Spiral Bar Coater
      Coating Thickness
      μm mils
      6 0.236
      Part Number K0004361P003
      Model Elcometer 4361/3 Spiral Bar Coater
      Coating Thickness
      μm mils
      8 0.315
      Part Number K0004361P004
      Model Elcometer 4361/4 Spiral Bar Coater
      Coating Thickness
      μm mils
      10 0.393
      Part Number K0004361P005
      Model Elcometer 4361/5 Spiral Bar Coater
      Coating Thickness
      μm mils
      12 0.472
      Part Number K0004361P006
      Model Elcometer 4361/6 Spiral Bar Coater
      Coating Thickness
      μm mils
      16 0.630
      Part Number K0004361P007
      Model Elcometer 4361/7 Spiral Bar Coater
      Coating Thickness
      μm mils
      20 0.787
      Part Number K0004361P008
      Model Elcometer 4361/8 Spiral Bar Coater
      Coating Thickness
      μm mils
      26 1.024
      Part Number K0004361P009
      Model Elcometer 4361/9 Spiral Bar Coater
      Coating Thickness
      μm mils
      30 1.181
      Part Number K0004361P010
      Model Elcometer 4361/10 Spiral Bar Coater
      Coating Thickness
      μm mils
      34 1.338
      Part Number K0004361P012
      Model Elcometer 4361/12 Spiral Bar Coater
      Coating Thickness
      μm mils
      40 1.574
      Part Number K0004361P013
      Model Elcometer 4361/13 Spiral Bar Coater
      Coating Thickness
      μm mils
      46 1.811
      Part Number K0004361P014
      Model Elcometer 4361/14 Spiral Bar Coater
      Coating Thickness
      μm mils
      50 1.968
      Part Number K0004361P020
      Model Elcometer 4361/20 Spiral Bar Coater
      Coating Thickness
      μm mils
      80 3.149
      Part Number K0004361P021
      Model Elcometer 4361/21 Spiral Bar Coater
      Coating Thickness
      μm mils
      90 3.543
      Part Number K0004361P022
      Model Elcometer 4361/22 Spiral Bar Coater
      Coating Thickness
      μm mils
      100 3.937
      Part Number K0004361P023
      Model Elcometer 4361/23 Spiral Bar Coater
      Coating Thickness
      μm mils
      110 4.330
      Part Number K0004361P024
      Model Elcometer 4361/24 Spiral Bar Coater
      Coating Thickness
      μm mils
      120 4.724
      Part Number K0004361P027
      Model Elcometer 4361/27 Spiral Bar Coater
      Coating Thickness
      μm mils
      150 5.905
      Part Number K0004361P029
      Model Elcometer 4361/29 Spiral Bar Coater
      Coating Thickness
      μm mils
      175 6.890
      Part Number K0004361P030
      Model Elcometer 4361/30 Spiral Bar Coater
      Coating Thickness
      μm mils
      200 7.874
      Part Number K0004361P031
      Model Elcometer 4361/31 Spiral Bar Coater
      Coating Thickness
      μm mils
      300 11.811
      Part Number K0004361P033
      Model Elcometer 4361/33 Spiral Bar Coater
      Coating Thickness
      μm mils
      500 19.685
  • Standards
    • Standards
