Elcometer 107 Cross Hatch Cutter

  • Protective Coatings
  • Industrial Finishing
107-intro-image-1
107-intro-image-2

The Elcometer 107 Cross Hatch Cutter for adhesion tests provides an instant assessment of the quality of the bond to the substrate.

  • Summary
    • Summary

    • Due to its rugged construction this cross hatch gauge is ideal for thin, thick or tough coatings on all surfaces. An ideal field or laboratory test.

      • Robust design
      • Large, non slip grip
      • Ideal for thin, thick or hard coatings
      • A quick change, 4 sided cutter allows adhesion testing on a wide range of coating thicknesses (1mm, 1.5mm, 2mm and 3mm)

      The Elcometer 107 Cross Hatch Cutter for adhesion testing is available as a Basic or Full Kit.

  • Technical Information
    • Technical Specification
      Elcometer 107 Cross Hatch Cutter
      Part Number Description Cutter Type Coating Thickness: Certificate
      F10713222-1 Elcometer 107 Basic Kit 6 x 1mm 0 - 60μm 0 - 2.4mils
      Optional Calibration Certificate available
      F10713348-6 Elcometer 107 Full Kit with ISO Tape 6 x 1mm 0 - 60μm 0 - 2.4mils
      Optional Calibration Certificate available
      F10713348-1 Elcometer 107 Full Kit with ASTM Tape 6 x 1mm 0 - 50μm 0 - 2.0mils
      Optional Calibration Certificate available
      F10713222-2 Elcometer 107 Basic Kit 11 x 1mm 0 - 50μm 0 - 2.0mils
      Optional Calibration Certificate available
      F10713348-2 Elcometer 107 Full Kit with ASTM Tape 11 x 1mm 0 - 50μm 0 - 2.0mils
      Optional Calibration Certificate available
      F10713222-3 Elcometer 107 Basic Kit 11 x 1.5mm 0 - 90μm* 0 - 3.5mils*
      Optional Calibration Certificate available
      F10713222-4 Elcometer 107 Basic Kit 6 x 2mm 50 - 125μm 2.0 - 5.0mils
      Optional Calibration Certificate available
      F10713348-9 Elcometer 107 Full Kit with ISO Tape 6 x 2mm 61 - 120μm 2.4 - 4.7mils
      Optional Calibration Certificate available
      F10713348-4 Elcometer 107 Cross Hatch Cutter Full Kit with ASTM Tape 6 x 2mm 50 - 125μm 2.0 - 5.0mils
      Optional Calibration Certificate available
      F10713222-5 Elcometer 107 Basic Kit 6 x 3mm 121 - 250μm 5.0 - 10mils
      Optional Calibration Certificate available
      Packing List Basic Kit: Robust handle, cutter, hexagonal wrench, presentation storage case and instructions (together with Classification of Adhesion Test Results chart)

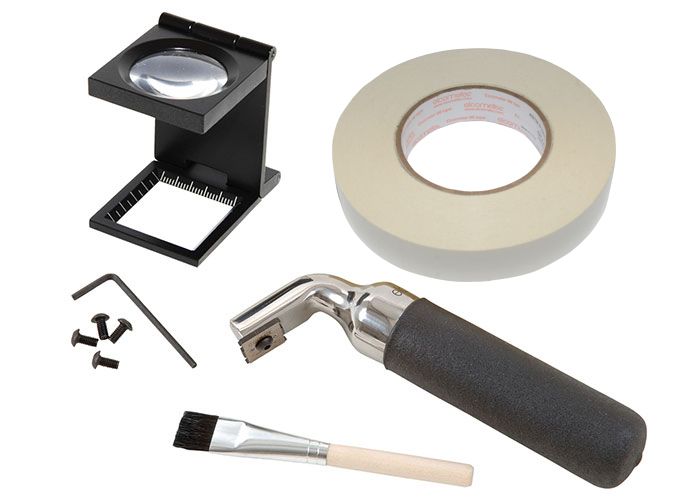

      Full Kit: Robust handle, cutter, hexagonal wrench, instructions (together with Classification of Adhesion Test Results chart), magnifier (x6 magnification), brush and adhesive tape (either ASTM or ISO tape), all in a plastic ABS carry case
      Part Number Description Certificate
      F10713222-1 Elcometer 107 Basic Kit
      Optional Calibration Certificate available
      Cutter Type 6 x 1mm
      Coating Thickness: 0 - 60μm (0 - 2.4mils)
      F10713348-6 Elcometer 107 Full Kit with ISO Tape
      Optional Calibration Certificate available
      Cutter Type 6 x 1mm
      Coating Thickness: 0 - 60μm (0 - 2.4mils)
      F10713348-1 Elcometer 107 Full Kit with ASTM Tape
      Optional Calibration Certificate available
      Cutter Type 6 x 1mm
      Coating Thickness: 0 - 50μm (0 - 2.0mils)
      F10713222-2 Elcometer 107 Basic Kit
      Optional Calibration Certificate available
      Cutter Type 11 x 1mm
      Coating Thickness: 0 - 50μm (0 - 2.0mils)
      F10713348-2 Elcometer 107 Full Kit with ASTM Tape
      Optional Calibration Certificate available
      Cutter Type 11 x 1mm
      Coating Thickness: 0 - 50μm (0 - 2.0mils)
      F10713222-3 Elcometer 107 Basic Kit
      Optional Calibration Certificate available
      Cutter Type 11 x 1.5mm
      Coating Thickness: 0 - 90μm* (0 - 3.5mils*)
      F10713222-4 Elcometer 107 Basic Kit
      Optional Calibration Certificate available
      Cutter Type 6 x 2mm
      Coating Thickness: 50 - 125μm (2.0 - 5.0mils)
      F10713348-9 Elcometer 107 Full Kit with ISO Tape
      Optional Calibration Certificate available
      Cutter Type 6 x 2mm
      Coating Thickness: 61 - 120μm (2.4 - 4.7mils)
      F10713348-4 Elcometer 107 Cross Hatch Cutter Full Kit with ASTM Tape
      Optional Calibration Certificate available
      Cutter Type 6 x 2mm
      Coating Thickness: 50 - 125μm (2.0 - 5.0mils)
      F10713222-5 Elcometer 107 Basic Kit
      Optional Calibration Certificate available
      Cutter Type 6 x 3mm
      Coating Thickness: 121 - 250μm (5.0 - 10mils)
      Packing List Basic Kit: Robust handle, cutter, hexagonal wrench, presentation storage case and instructions (together with Classification of Adhesion Test Results chart)
      Full Kit: Robust handle, cutter, hexagonal wrench, instructions (together with Classification of Adhesion Test Results chart), magnifier (x6 magnification), brush and adhesive tape (either ASTM or ISO tape), all in a plastic ABS carry case
      * Approximate Thickness
      Optional Calibration Certificate available.
  • Standards
    • Standards
      Elcometer 107 Cross Hatch Cutter

      AS 3894.9, AS 1580.408.4, ASTM D 3359-B, BS 3900-E6, ECCA T6, EN 13523-6, ISO 2409, ISO 16276-2, JIS K 5600-5-6, NF T30-038

      Standards in grey have been superseded but are still recognised in some industries.

  • Downloads
    • Downloads
      • Elcometer 107 Cross Hatch Cutter Multi-Lingual Instruction Manual

      • Elcometer 107 Cross Hatch Cutter Datasheet

      • Elcometer 99 ASTM Tape Material Safety Data Sheet

      • Elcometer ISO Tape Material Safety Data Sheet

  • Part Numbers
    • Part Numbers
      Elcometer 107 Cross Hatch Cutter
      • Elcometer 107 Cross Hatch Cutter Basic Kit (6 x 1mm cutter)
        • Part Number : F10713222-1
        • Certification : No Certificate
        • Part Number : F10713222-1C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Full Kit with ISO Tape (6 x 1mm Cutter)
        • Part Number : F10713348-6
        • Certification : No Certificate
        • Part Number : F10713348-6C
        • Certification : Calibration Certificate
      • Elcometer 107 Full Kit with ASTM Tape (6 x 1mm Cutter)
        • Part Number : F10713348-1
        • Certification : No Certificate
        • Part Number : F10713348-1C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Basic Kit (11 x 1mm Cutter)
        • Part Number : F10713222-2
        • Certification : No Certificate
        • Part Number : F10713222-2C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Full Kit with ASTM Tape (11 x 1mm cutter)
        • Part Number : F10713348-2
        • Certification : No Certificate
        • Part Number : F10713348-2C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Basic Kit (11 x 1.5mm cutter)
        • Part Number : F10713222-3
        • Certification : No Certificate
        • Part Number : F10713222-3C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Basic Kit (6 x 2mm cutter)
        • Part Number : F10713222-4
        • Certification : No Certificate
        • Part Number : F10713222-4C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Full Kit with ISO Tape (6 x 2mm cutter)
        • Part Number : F10713348-9
        • Certification : No Certificate
        • Part Number : F10713348-9C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Full Kit with ASTM Tape (6 x 2mm cutter)
        • Part Number : F10713348-4
        • Certification : No Certificate
        • Part Number : F10713348-4C
        • Certification : Calibration Certificate
      • Elcometer 107 Cross Hatch Cutter Basic Kit (6 x 3mm cutter)
        • Part Number : F10713222-5
        • Certification : No Certificate
        • Part Number : F10713222-5C
        • Certification : Calibration Certificate
  • Accessories
    • Accessories
      Elcometer 107 Cross Hatch Cutter
      • Part NumberT99913700-1
      • Part NumberT99913700-2
      • Part NumberT99913700-3
      • Part NumberT99913700-5
      • Part NumberK0001539M001
      • Part NumberT9998894-
      • Part NumberT9999358-1
      • Part NumberT9999358-2
      • Part NumberT10713356
      • Part NumberT99913357
