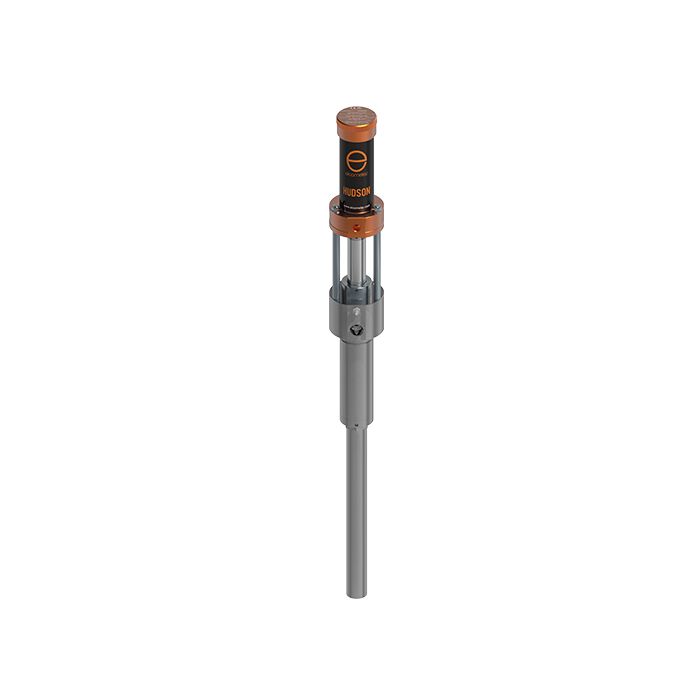

Elcometer Hudson Transfer Pumps

Elcometer-HUDSON-Transfer-Pumps-intro

The Elcometer HUDSON is a stainless steel piston transfer pump engineered to transfer solvent and water based fluids with a particle size of up to 5mm (0.2").

  • 要約
    • 要約

    • Designed to handle a broad range of water and solvent based materials, from hot to high viscous fluids or corrosive liquids, the Elcometer HUDSON's high flow rate and immersed inlet makes it ideal for priming fluids.

      Powerful performance
      With up to 60 litres per minute (18.73gpm) maximum free flow, the Elcometer Hudson is the ideal stick pump to transfer most types of hot or cold, viscous or corrosive liquids.

      Durable and hardwearing
      The Elcometer Hudson is a very low maintenance pump with hardwearing components such as the PTFE carbon and stainless steel packing seal kit, making it incredibly durable and long lasting.

      Efficient
      Designed with low air consumption, the Elcometer Hudson helps to lower expensive compressor usage costs.

      Safe
      The Elcometer Hudson conforms to ATEX Zone 2 ensuring it is safe for use in potentially hazardous Zone 2 areas.

  • 特長
    • 特長

      Elcometer Hudson Transfer Pumps

      Key-Features_9


      1) Low air consumption air motor to reduce compressor costs

      2) Durable stainless steel piston rod

      3) Integrated wet cup to prevent moisture ingress penetrating fluid

      4) Easy to add Throat Seal Liquid

      5) Durable PTFE carbon & stainless steel packing seal kit with most bung adaptors

      6) 1/2" High Flow Fluid Outlet

      7) Stainless steel ball and seat prevents wear when using corrosive fluids

      8) 1" BSP cylinder diameter compatible

      9) Lightweight 6.5kg (14.33lb) short and 7kg (15.43lb) long, making it easier for manual handling

      10) Removable cylinder housing to quickly adapt from using large scale drums to smaller vessels

      11) Suitable for use with hot or cold fluids 4.4ºC - 60ºC (39.9ºF - 140ºF)

      12) Available with 200 litre (44 gallons) drum lid and rotary agitator



      The Elcometer HUDSON range is suitable for use with...

      The Elcometer Hudson range is suitable for use with Solvent Based and Water Based materials as well a wide range of products.

      Product
      AntifreezeWindshield Washer Liquid
      Motor OilUsed Oil
      Hydraulic FluidWater based Inks
      Oil-based materialsSolvent-based materials
      Water-based materialsInks and Dyes
  • 仕様
    • 仕様
      Elcometer Hudson Transfer Pumps
      HUDSON 60 SHORT HUDSON 60 LONG
      PneumaticPumpIndus Shaft Length 488.75mm (19.24") 867.25mm (34.14")
      PneumaticPumpIndus Ratio 1 : 1
      PneumaticPumpIndus Max fluid particle size 5mm (0.2")
      PneumaticPumpIndus Fluid temperature range 4.4 - 60°C (40 - 140°F)
      PneumaticPumpIndus Fluid inlet size 1” BSP Female
      PneumaticPumpIndus Fluid outlet size 1/2” BSP Male
      PneumaticPumpIndus Compatible Products Solvent, waterbased and corrosive products
      COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET)
      PneumaticPumpIndus Top Valve Stainless Steel
      PneumaticPumpIndus Bottom Valve Stainless Steel
      PneumaticPumpIndus Pump Body / Cylinder Housing Stainless Steel
      PneumaticPumpIndus Packing Kit (Top) PTFE Carbon/Stainless Steel
      PneumaticPumpIndus Packing Kit (Bottom) PTFE
      EXTERNAL PUMP PARTS (DRY)
      PneumaticPumpIndus Pump Body / Cylinder Housing dry Stainless Steel/ Anodised Aluminium
      AIR
      PneumaticPumpIndus Air Pressure Operating Range 1-7bar (14-101psi)
      PneumaticPumpIndus Air Consumption 3 bar (43.5 psi) & 7.5 CPM 3.75lpm (0.97gpm)
      PneumaticPumpIndus Air Consumption at 3 bar (43.5 psi) & 16 CPM 8.0lpm (2.09gpm)
      PneumaticPumpIndus Max Air Inlet Pressure 7bar (101psi)
      PneumaticPumpIndus Air Inlet 1/4” BSP Female
      PneumaticPumpIndus Air Exhaust / Silencer Port 2 x ∅6mm (2 x ∅0.23")
      PneumaticPumpIndus Ambient Air Temp 4.4 - 60°C (40 - 140°F)
      PneumaticPumpIndus Compressor Requirements (Minimum) 1.25lpm / 0.04cfm @ 1 bar (46 US fl oz @ 15 psi)
      FLUID / PRODUCT
      PneumaticPumpIndus Maximum Fluid Outlet Working Pressure 7bar (101psi)
      PneumaticPumpIndus Stroke Length 85mm (3.35")
      PneumaticPumpIndus Product Output per Cycle 170 cc (6.15fl oz/min)
      PneumaticPumpIndus Maximum Free Flow 60lpm (18.73gpm)
      PneumaticPumpIndus Free Flow Delivery @ 60 CPM* 15lpm (3.96gpm)
      DIMENSIONS
      PneumaticPumpIndus Weight (Pump only) 6.5kg (14.33 lb) 7.0kg (15.43 lb)
      PneumaticPumpIndus Dimensions 97 x 88 x 877mm (3.82 x 3.46 x 34.53”) 97 x 88 x 1256mm (3.82 x 3.46 x 49.45")
      1. With suction hose or deposit and pump output filter.
      2. Product Output per Cycle = Fluid Displacement per Cycle
      3. Maximum Free Flow is the volume of fluid the pump is able to transfer at maximum speed and at an undefined number of cycles.
      4. Maximum values with water as test media.

      * lpm: Litres per minute fl oz/min: US Fluid ounces per minute gpm: US Gallons per minute CPM: Cycles per minute
  • ダウンロード
    • ダウンロード
        • Elcometer Hudson Transfer Pump Data Sheet

  • コード番号
    • コード番号
      Elcometer Hudson Transfer Pumps
      • Elcometer Hudson 60 Stainless Steel Piston Transfer Pump - Short
        • コード番号 : PTP160SAS
      • Elcometer Hudson 60 Stainless Steel Piston Transfer Pump - Long
        • コード番号 : PTP160LAS
      • Elcometer 200 Drum Cover complete with Elcometer Hudson 60 Stainless Steel Piston Transfer Pump - Long
        • コード番号 : PSP160LAS-C
      • Elcometer 200 Drum Cover complete with Elcometer Hudson 60 Stainless Steel Piston Transfer Pump - Long & Rotary Agitator
        • コード番号 : PSP160LAS-C-RA
  • アクセサリー
    • アクセサリー
      Elcometer Hudson Transfer Pumps
      • コード番号: 56414024
      • コード番号: 56414025
      • コード番号: 56414027
      • コード番号: 56414026
      • コード番号: PT56414130
      • コード番号: PT56414039
      • コード番号: PT56414044
      • コード番号: PT56414040
      • コード番号: PT56414041
      • コード番号: PT56414042
      • コード番号: PT56414028
      • コード番号: PT56414116
      • コード番号: PT56414117
      • コード番号: PT56414115
      • コード番号: PT56414118
      • コード番号: PT56414119
