Sagola 475 XTech Gravity Fed Touch Up Gun

475-Xtech-angle-intro
475-Xtech-cup-intro

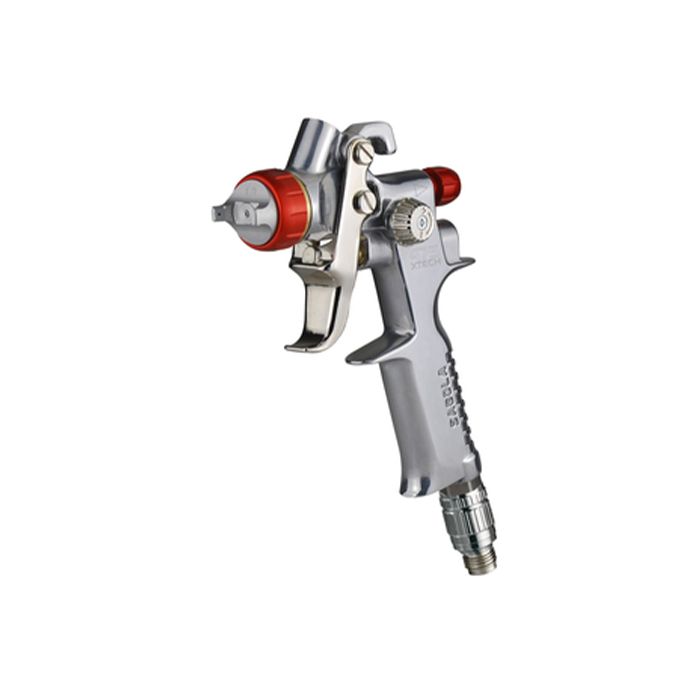

The Sagola 475 XTech Gravity Fed Touch Up Gun is designed to be small, light and incredibly precise, perfect for shading, retouches or spraying of small parts.

  • 要約
    • 要約

      • Precision: Precision solutions for detailing and retouches
      • High quality: Very high spray quality
      • 3 Year Warranty & Virtually Maintenance Free: No internal or exterior gaskets
    • 製品の特長
      • Aircap, Needle & Nozzle Kits
        Sagola 475 XTech Gravity Fed Touch Up Gun
        Sagola 475 XTech Conventional (CA) Aircap
        Needle Nozzle & [Aircaps] Suitable For Working Pressure Range Air Consumption at 2bar (29psi) Product Output Flow (average) Application Distance Fan Width (max)
        0.5 [R5] Finest featherings 1.5 - 2.0bar
        (22 - 29psi)
        45l/min
        (1.59cfm)
        38g/min
        (1.34oz/min)
        18 - 20cm
        (7 - 7.9”)
        --
        0.5 [05] Feathering and retouches 1.5 - 2.0bar
        (22 - 29psi)
        100l/min
        (3.53cfm)
        60g/min
        (2.12oz/min)
        18 - 20cm
        (7 - 7.9”)
        140mm
        (5.5”)
        0.8 [05] Feathering and retouches 1.5 - 2.0bar
        (22 - 29psi)
        100l/min
        (3.53cfm)
        73g/min
        (2.57oz/min)
        18 - 20cm
        (7 - 7.9”)
        162mm
        (6.4”)
        1.0 [10] Feathering and retouches 1.5 - 2.0bar
        (22 - 29psi)
        110l/min
        (3.88cfm)
        90g/min
        (3.17oz/min)
        18 - 20cm
        (7 - 7.9”)
        160mm
        (6.3”)
    • 仕様
      • 仕様
        Sagola 475 XTech Gravity Fed Touch Up Gun
        モデル Sagola 475 XTech
        SG Cup Capacity 125ml (4.23fl oz) SG Cup Type Removable Anti-Drip System
        SG Air Inlet Couplings 6.35mm (1/4”) Male BSP SG Paint Filter 100 mesh
        SG Weight with Supplied Cup 339.4g (0.75lbs) SG Weight without Cup 272.9g (0.60lbs)
        SG Dimensions without Cup (W x D x H) 109 x 33 x 152mm (4.29 x 1.30 x 5.98”)
        内用品 Sagola 475 XTech Gravity Fed Touch Up Gun with Aircap, Needle & Nozzle Kit (supplied fitted), 125ml (4.23fl oz) Reusable Plastic Gravity Cup with Product Filter (x1), Hexagonal Wrench & Cleaning Brush
    • ダウンロード
      • ダウンロード

          Sagola 475 XTech Gravity Fed Touch Up Gun Instruction Manual

    • コード番号
      • コード番号
        Sagola 475 XTech Gravity Fed Touch Up Gun
        • Sagola 475 XTech Gravity Fed Touch Up Gun, 05 Aircap - 0.50 Needle & Nozzle Kit

          This Sagola 475 XTech Gravity Fed Touch Up Gun is supplied with a 1.50mm Needle and Nozzle size and an 05 475 XTech Aircap, which is ideal for feathering and retouches.

          • SG Needle & Nozzle Size: 0.50 (0.50mm)
          • SG Sagola 475 XTech Aircap Type: 05
          • コード番号 : PG20140801
        • Sagola 475 XTech Gravity Fed Touch Up Gun, 05 Aircap - 0.80 Needle & Nozzle Kit

          This Sagola 475 XTech Gravity Fed Touch Up Gun is supplied with a 0.80mm Needle and Nozzle size and an 05 475 XTech Aircap, which is ideal for feathering and retouches.

          • SG Needle & Nozzle Size: 0.80 (0.80mm)
          • SG Sagola 475 XTech Aircap Type: 05
          • コード番号 : PG20140802
        • Sagola 475 XTech Gravity Fed Touch Up Gun, 10 Aircap - 1.00 Needle & Nozzle Kit

          This Sagola 475 XTech Gravity Fed Touch Up Gun is supplied with a 1.00mm Needle and Nozzle size and a 10 475 XTech Aircap, which is ideal for feathering and retouches.

          • SG Needle & Nozzle Size: 1.00 (1.00mm)
          • SG Sagola 475 XTech Aircap Type: 10
          • コード番号 : PG20140803
        • Sagola 475 XTech Gravity Fed Touch Up Gun, R5 Aircap - 0.50 Needle & Nozzle Kit

          This Sagola 475 XTech Gravity Fed Touch Up Gun is supplied with a 0.50mm Needle and Nozzle size and an R5 475 XTech Aircap, which is ideal for finest featherings.

          • SG Needle & Nozzle Size: 0.50 (0.50mm)
          • SG Sagola 475 XTech Aircap Type: R5
          • コード番号 : PG20140804
    • アクセサリー
      • アクセサリー
        Sagola 475 XTech Gravity Fed Touch Up Gun
        • コード番号PT40000335
        • コード番号PT56418081
        • コード番号PT56418061
        • コード番号PT56418246
        • コード番号PT56418247
        • コード番号PT56418271
        • コード番号PT10011195
        • コード番号PT10011197
        • コード番号PT10011198
        • コード番号PT56418079
        • コード番号PT10011196
